Part Number	BUZ73A
Manufacturer	Harris Corporation
Other Part Numbers	2156-BUZ73A-HC-ND 2156-BUZ73A-HC HARHARBUZ73A
Description	MOSFET N-CH 200V 5.5A TO220-3
Detailed Description	N-Channel 200 V 5.5A (Tc) 40W (Tc) Through Hole PG-TO220-3

Category		Discrete Semiconductor Products Transistors FETs, MOSFETs Single FETs, MOSFETs
Manufacturer		Harris Corporation
Series		SIPMOS®
Packaging		Tube
Part Status		Obsolete

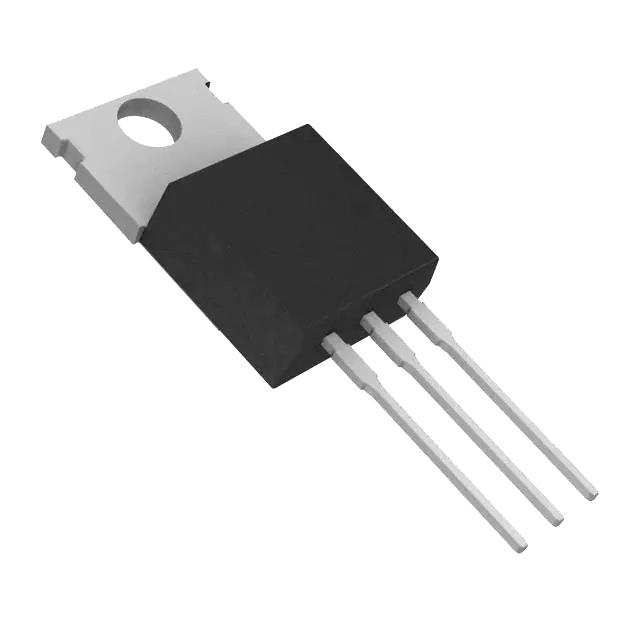

Package / Case		TO-220-3
Mounting Type		Through Hole
Operating Temperature		-55°C ~ 150°C (TJ)
Technology		MOSFET (Metal Oxide)
FET Type		N-Channel
Current - Continuous Drain (Id) @ 25°C		5.5A (Tc)
Rds On (Max) @ Id, Vgs		600mOhm @ 4.5A, 10V
Power Dissipation (Max)		40W (Tc)
Vgs(th) (Max) @ Id		4V @ 1mA
Supplier Device Package		PG-TO220-3
Drive Voltage (Max Rds On, Min Rds On)		10V
Vgs (Max)		±20V
Drain to Source Voltage (Vdss)		200 V
Input Capacitance (Ciss) (Max) @ Vds		530 pF @ 25 V

RESOURCE TYPE		LINK

This product is no longer manufactured.
