BWHP0011070627NG00

Part Number
BWHP0011070627NG00
Manufacturer Pulse Larsen Antenna
Other Part Numbers
553-BWHP0011070627NG00TR-ND
553-BWHP0011070627NG00TR
Description INDUCTOR RF

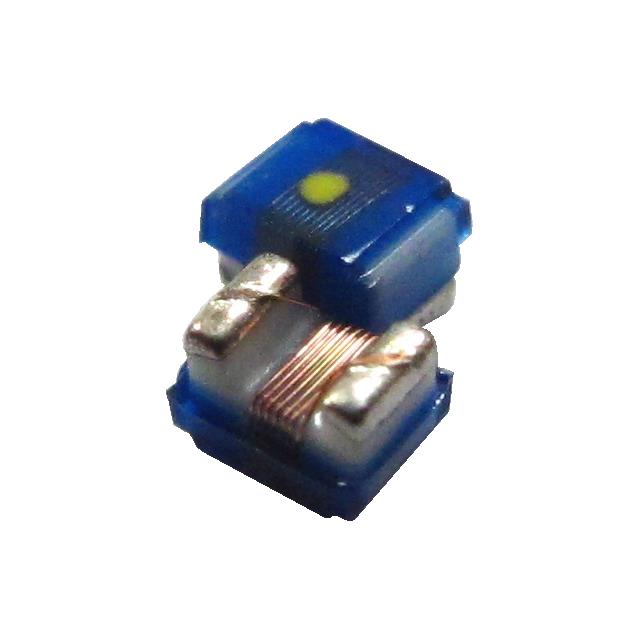

Detailed Description 27 nH Unshielded Drum Core, Wirewound Inductor 450 mA 300mOhm Max 0402 (1005 Metric)
Manufacturer Standard Lead Time 13 weeks
Datasheet Datasheet

Product Attributes

Category
Manufacturer Pulse Larsen Antenna
Series
BWHP
Packaging
Tape & Reel (TR)
Part Status Active
Tolerance ±2%
Package / Case 0402 (1005 Metric)
Size / Dimension 0.043" L x 0.028" W (1.10mm x 0.70mm)
Mounting Type Surface Mount
Shielding Unshielded
Type Drum Core, Wirewound
Operating Temperature -40°C ~ 125°C
DC Resistance (DCR) 300mOhm Max
Q @ Freq 30 @ 250MHz
Frequency - Self Resonant 3.2GHz
Material - Core Ceramic
Inductance Frequency - Test 250 MHz
Supplier Device Package 0402
Height - Seated (Max) 0.026" (0.65mm)
Inductance 27 nH
Current Rating (Amps) 450 mA

Documents & Media

RESOURCE TYPE LINK
Datasheets BWHP0011070627NG00
Datasheets Pulse Larson REACH

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8504.50.8000
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
RoHS Status ROHS3 Compliant

Available To Order

PACKAGING QUANTITY UNIT PRICE EXT PRICE
{{ p.name }} {{ numberFormat(p.buyQty) }} {{ priceFormat(p.unitPrice) }} {{ priceFormat(p.totalPrice) }}
Total Amount: {{ priceFormat(quotes.total) }} (including {{ priceFormat(quotes.fee) }} fee)

{{ package.name }}

QUANTITY UNIT PRICE EXT PRICE
{{ numberFormat(price.break_quantity) }} {{ priceFormat(price.unit_price) }} {{ priceFormat(price.break_quantity * price.unit_price) }}
Detailed pricing is currently unavailable.
Detailed packaging information is temporarily unavailable.
