BZX84C9V1LT1G

BZX84C9V1LT1G

Part Number	BZX84C9V1LT1G
Manufacturer	Sanyo Semiconductor/onsemi
Other Part Numbers	BZX84C9V1LT1GOSTR-ND BZX84C9V1LT1GOSCT-ND BZX84C9V1LT1GOSDKR-ND BZX84C9V1LT1GOSCT BZX84C9V1LT1GOSDKR ONSONSBZX84C9V1LT1G BZX84C9V1LT1GOSTR 2156-BZX84C9V1LT1G-OS
Description	DIODE ZENER 9.1V 250MW SOT23-3
Detailed Description	Zener Diode 9.1 V 225 mW ±5% Surface Mount SOT-23-3 (TO-236)
Manufacturer Standard Lead Time	23 weeks
Datasheet	Datasheet

Product Attributes

Category		Discrete Semiconductor Products Diodes Zener Single Zener Diodes
Manufacturer		Sanyo Semiconductor/onsemi
Series		BZX84CxxxLT1G
Packaging		Tape & Reel (TR) Cut Tape (CT)
Part Status		Active
Tolerance		±5%

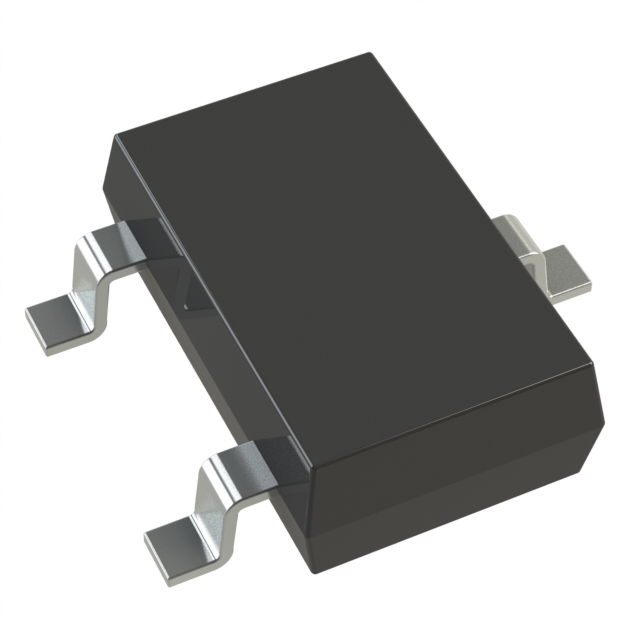

Package / Case		TO-236-3, SC-59, SOT-23-3
Mounting Type		Surface Mount
Operating Temperature		-65°C ~ 150°C (TJ)
Voltage - Zener (Nom) (Vz)		9.1 V
Impedance (Max) (Zzt)		15 Ohms
Supplier Device Package		SOT-23-3 (TO-236)
Power - Max		225 mW
Voltage - Forward (Vf) (Max) @ If		900 mV @ 10 mA
Current - Reverse Leakage @ Vr		500 nA @ 6 V

Documents & Media

RESOURCE TYPE		LINK
Datasheets		BZX84C9V1LT1G
Datasheets		onsemi RoHS
Datasheets		Material Declaration BZX84C9V1LT1G
Datasheets		Glue Mount Process 11/July/2008
Datasheets		Copper Wire 08/Jun/2009
Datasheets		Mult Dev Mold Comp Chg 7/Apr/2020

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8541.10.0050
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

In Stock: 4498

Can ship immediately.

QUANTITY

PACKAGING	QUANTITY	UNIT PRICE	EXT PRICE
Cut Tape (CT)	1	$0.15	$0.15
Total Amount: $0.15

Tape & Reel (TR)

QUANTITY	UNIT PRICE	EXT PRICE
3,000	$0.03	$90.00
6,000	$0.02	$120.00
9,000	$0.02	$180.00
30,000	$0.02	$600.00
75,000	$0.02	$1,500.00
150,000	$0.01	$1,500.00

Cut Tape (CT)

QUANTITY	UNIT PRICE	EXT PRICE
1	$0.15	$0.15
10	$0.10	$1.00
100	$0.06	$6.00
500	$0.04	$20.00
1,000	$0.03	$30.00
