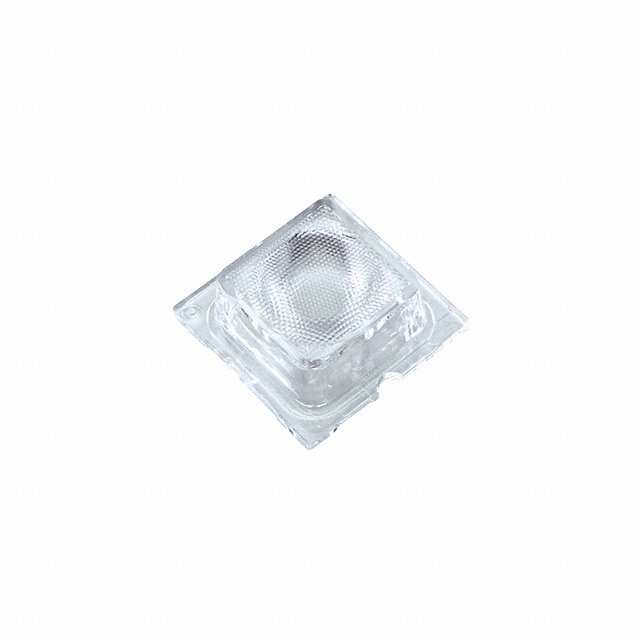

C16369_HB-SQ-W

C16369_HB-SQ-W

Part Number	C16369_HB-SQ-W
Manufacturer	LEDiL
Other Part Numbers	711-1589-ND 711-1589
Description	LENS CLEAR 53-65DEG MEDIUM ADH
Detailed Description	Lens Clear 53° ~ 65° Medium Adhesive
Manufacturer Standard Lead Time	6 weeks
Datasheet	Datasheet

Product Attributes

Category		Optoelectronics Lenses
Manufacturer		LEDiL
Series		High Bay
Packaging		Tray
Part Status		Active
Color		Clear
Mounting Type		Adhesive
Material		Acrylic
Type		Lens
Viewing Angle		53° ~ 65°
Optical Pattern		Medium
Lens Style		Square with Flat Top
Lens Size		25mm x 25mm
For Use With/Related Manufacturer		Cree, LG Innotek, Lumileds, Nichia, Osram
Number of LEDs		1

Documents & Media

RESOURCE TYPE		LINK
Datasheets		C16369_HB-SQ-W
Datasheets		Ledil CA Prop 65
Datasheets		Ledil RoHS/REACH
Datasheets		All Dev Mat Chgs 26/Nov/2021
Datasheets		All parts PMMA Material 13/Oct/2023
Datasheets		C16369_HB-SQ-W Drawing

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
California Prop 65		California Prop 65 Information
ECCN		EAR99
HTSUS		9001.90.4000
Moisture Sensitivity Level (MSL)		Not Applicable
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

In Stock: 3627

Can ship immediately.
