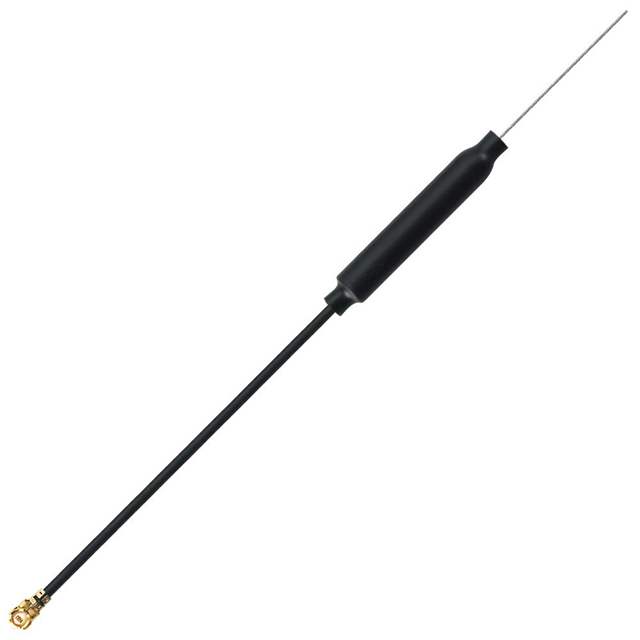

CBD01.07.0100C

CBD01.07.0100C

Part Number	CBD01.07.0100C
Manufacturer	Taoglas
Other Part Numbers	931-1532-ND 931-1532 2266-CBD01.07.0100C
Description	RF ANT 4.9GHZ WHIP STR CONN MT
Detailed Description	4.9GHz ISM, Wi-Fi Whip, Straight RF Antenna 2.4GHz ~ 2.5GHz 3.24dBi U.FL (UMCC), IPEX MHF1 Connector Mount
Manufacturer Standard Lead Time	11 weeks
Datasheet	Datasheet

Product Attributes

Category		RF and Wireless RF Antennas
Manufacturer		Taoglas
Series
Packaging		Bag
Part Status		Active
Features		Cable - 100mm
Mounting Type		Connector Mount
Frequency Range		2.4GHz ~ 2.5GHz
Applications		ISM, Wi-Fi
Gain		3.24dBi
Termination		U.FL (UMCC), IPEX MHF1
Number of Bands		1
VSWR		2
Antenna Type		Whip, Straight
Height (Max)		0.185" (4.70mm)
Return Loss		-10dB
Frequency Group		SHF (f > 4GHz)
Frequency (Center/Band)		4.9GHz
RF Family/Standard		General ISM, WiFi
Power - Max		2 W

Documents & Media

RESOURCE TYPE		LINK
Datasheets		CBD01.07.0100C
Datasheets		Taoglas Limited RoHS

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
California Prop 65		California Prop 65 Information
ECCN		EAR99
HTSUS		8517.71.0000
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

In Stock: 64

Can ship immediately.

QUANTITY

PACKAGING	QUANTITY	UNIT PRICE	EXT PRICE
Bag	1	$11.85	$11.85
Total Amount: $11.85

Bag

QUANTITY	UNIT PRICE	EXT PRICE
1	$11.85	$11.85
100	$11.78	$1,178.00
500	$11.62	$5,810.00
1,000	$11.29	$11,290.00
