CBEC223-0679B001C1AF _ Headers, Receptacles, Female Sockets_Rectangular Connectors_Connectors, Interconnects

Part Number	CBEC223-0679B001C1AF
Manufacturer	Greenconn Technology
Other Part Numbers	4217-CBEC223-0679B001C1AFTR-ND 4217-CBEC223-0679B001C1AFCT-ND 4217-CBEC223-0679B001C1AFDKR-ND CBEC223-0602B001C1AF 4217-CBEC223-0679B001C1AFCT 4217-CBEC223-0679B001C1AFTR 4217-CBEC223-0679B001C1AFDKR 4217-CBEC223-0602B001C1AFDKR 4217-CBEC223-0602B001C1AFCT 4217-CBEC223-0602B001C1AFTR 4217-CBEC223-0602B001C1AFDKR-ND 4217-CBEC223-0602B001C1AFCT-ND 4217-CBEC223-0602B001C1AFTR-ND
Description	PITCH 1.27MM BOARD TO BOARD FEMA

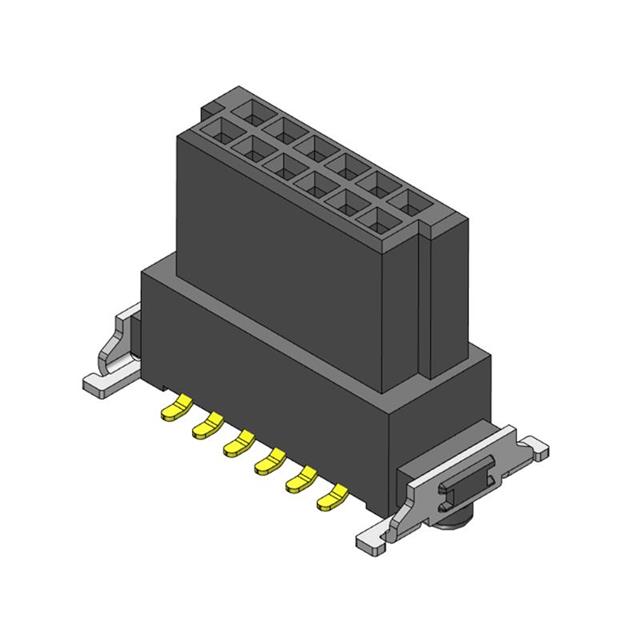

Detailed Description	12 Position Receptacle Connector 0.050" (1.27mm) Surface Mount Gold
Manufacturer Standard Lead Time	4 weeks
Datasheet	Datasheet

Category		Connectors, Interconnects Rectangular Connectors Headers, Receptacles, Female Sockets
Manufacturer		Greenconn Technology
Series		CBEC223
Packaging		Tape & Reel (TR) Cut Tape (CT)
Part Status		Active
Features		Board Guide, Pick and Place, Solder Retention
Connector Type		Receptacle
Current Rating (Amps)		1.7A per Contact
Mounting Type		Surface Mount
Number of Positions		12
Style		Board to Board
Operating Temperature		-55°C ~ 125°C
Contact Type		Female Socket
Fastening Type		Push-Pull
Number of Positions Loaded		All
Termination		Solder
Material Flammability Rating		UL94 V-0
Contact Material		Phosphor Bronze
Insulation Color		Black
Pitch - Mating		0.050" (1.27mm)
Contact Finish - Mating		Gold
Contact Finish Thickness - Mating		Flash
Contact Finish - Post		Gold
Contact Finish Thickness - Post		Flash
Contact Shape		Square
Insulation Height		0.356" (9.05mm)
Insulation Material		Liquid Crystal Polymer (LCP)
Row Spacing - Mating		0.050" (1.27mm)
Number of Rows		2

RESOURCE TYPE		LINK
Datasheets		CBEC223-0679B001C1AF

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.69.4040
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		See Individual Parts
RoHS Status		ROHS3 Compliant
