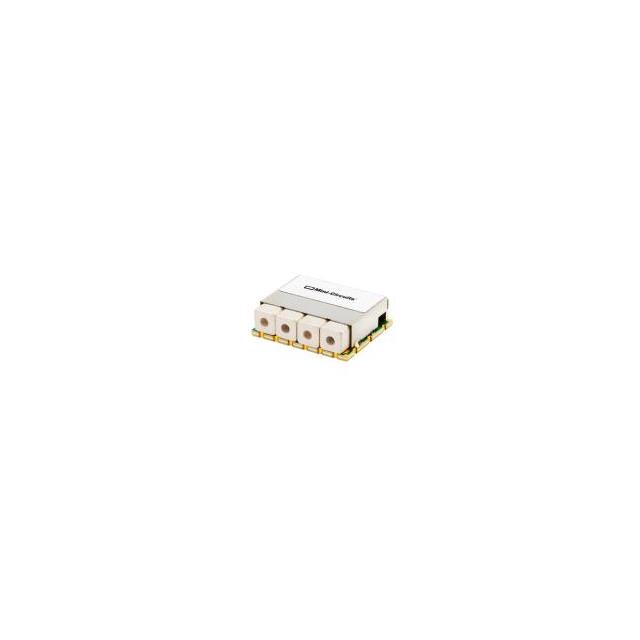

CBP6-507BG+

Part Number
CBP6-507BG+
Manufacturer Mini-Circuits
Other Part Numbers
3157-CBP6-507BG+-ND
3157-CBP6-507BG+
Description CERAMIC RESONATOR BAND PASS FILT
Detailed Description 507MHz Center Band Pass Ceramic Filter 5 MHz 50Ohm 17-SMD Module
Manufacturer Standard Lead Time 13 weeks
Datasheet Datasheet

Product Attributes

Category
Manufacturer Mini-Circuits
Series
Packaging
Bulk
Part Status Active
Package / Case 17-SMD Module
Filter Type Band Pass
Size / Dimension 1.050" L x 0.875" W (26.67mm x 22.23mm)
Impedance 50Ohm
Mounting Type Surface Mount
Frequency 507MHz Center
Insertion Loss 4.8dB
Height (Max) 0.345" (8.76mm)
Bandwidth 5 MHz

Documents & Media

RESOURCE TYPE LINK
Datasheets CBP6-507BG+

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8548.00.0000
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status Vendor Undefined
RoHS Status ROHS3 Compliant

In Stock: 8

Can ship immediately.
