CD4071BK3

CD4071BK3

Part Number	CD4071BK3
Manufacturer	Harris Corporation
Other Part Numbers	2156-CD4071BK3-ND 2156-CD4071BK3 HARHARCD4071BK3
Description	IC GATE OR 4CH 2-INP 14CFP
Detailed Description	OR Gate IC 4 Channel 14-CFP

Product Attributes

Category		Integrated Circuits (ICs) Logic Gates and Inverters
Manufacturer		Harris Corporation
Series
Packaging		Bulk
Part Status		Active

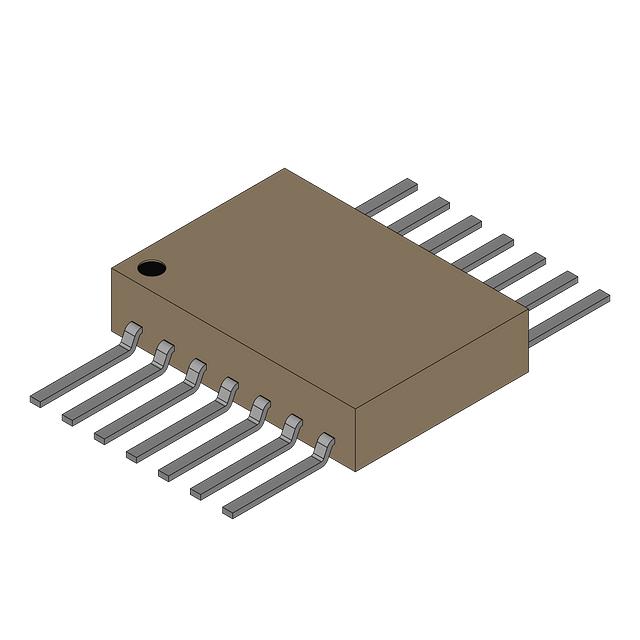

Package / Case		14-CFlatPack
Mounting Type		Surface Mount
Logic Type		OR Gate
Operating Temperature		-55°C ~ 125°C
Voltage - Supply		3V ~ 18V
Current - Output High, Low		6.8mA, 6.8mA
Number of Inputs		2
Supplier Device Package		14-CFP
Input Logic Level - High		3.5V ~ 11V
Input Logic Level - Low		1.5V ~ 4V
Max Propagation Delay @ V, Max CL		90ns @ 15V, 50pF
Number of Circuits		4
Current - Quiescent (Max)		5 µA

Documents & Media

RESOURCE TYPE		LINK

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8542.39.0001
Moisture Sensitivity Level (MSL)		3 (168 Hours)
REACH Status		Vendor Undefined
RoHS Status		RoHS non-compliant
