CD54ACT273F3A _ Flip Flops_Logic_Integrated Circuits (ICs)

Part Number	CD54ACT273F3A
Manufacturer	Texas Instruments
Other Part Numbers	296-CD54ACT273F3A-ND 296-CD54ACT273F3A
Description	OCTAL D-TYPE FLIP-FLOPS WITH RES
Detailed Description	Flip Flop 1 Element D-Type 8 Bit Positive Edge 20-CDIP (0.300", 7.62mm)
Datasheet	Datasheet

Category		Integrated Circuits (ICs) Logic Flip Flops
Manufacturer		Texas Instruments
Series		54ACT
Packaging		Tube
Part Status		Active

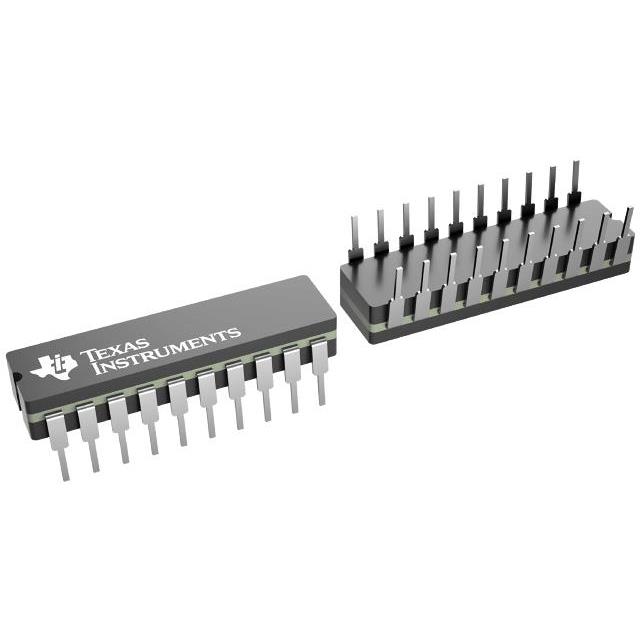

Package / Case		20-CDIP (0.300", 7.62mm)
Output Type		Non-Inverted
Mounting Type		Through Hole
Number of Elements		1
Function		Master Reset
Type		D-Type
Operating Temperature		-55°C ~ 125°C (TA)
Voltage - Supply		4.5V ~ 5.5V
Current - Quiescent (Iq)		8 µA
Current - Output High, Low		24mA, 24mA
Trigger Type		Positive Edge
Clock Frequency		85 MHz
Input Capacitance		10 pF
Supplier Device Package		20-CDIP
Max Propagation Delay @ V, Max CL		13.5ns @ 5V, 50pF
Number of Bits per Element		8

RESOURCE TYPE		LINK
Datasheets		CD54ACT273F3A

ATTRIBUTE		DESCRIPTION
Moisture Sensitivity Level (MSL)		Not Applicable
RoHS Status		ROHS3 Compliant
