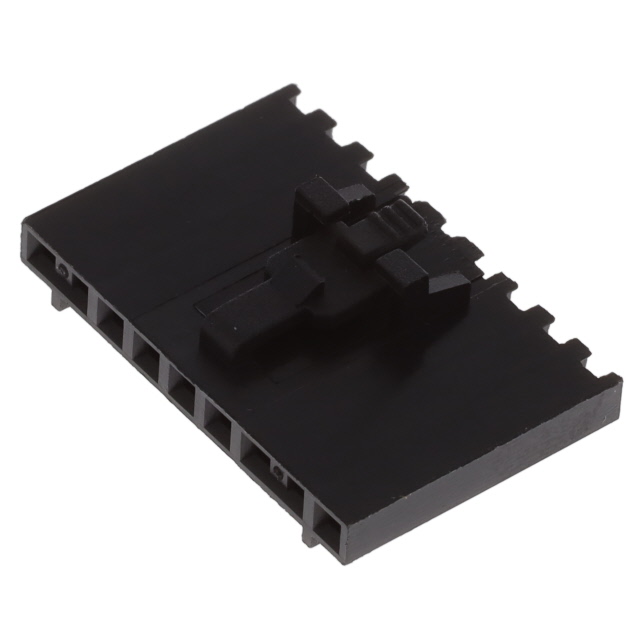

CDH-09

CDH-09

Part Number	CDH-09
Manufacturer	Adam Tech
Other Part Numbers	2057-CDH-09-ND 2057-CDH-09
Description	CONN PLUG HSG 9POS 2.54MM
Detailed Description	9 Rectangular Connectors - Housings Plug Black 0.100" (2.54mm)
Manufacturer Standard Lead Time	14 weeks
Datasheet	Datasheet

Product Attributes

Category		Connectors, Interconnects Rectangular Connectors Rectangular Connector Housings
Manufacturer		Adam Tech
Series		CDH
Packaging		Bag
Part Status		Active
Connector Type		Plug
Contact Termination		Crimp
Color		Black
Mounting Type		Free Hanging (In-Line)
Number of Positions		9
Pitch		0.100" (2.54mm)
Operating Temperature		-25°C ~ 85°C
Contact Type		Female Socket
Fastening Type		Latch Lock
Note		Contacts Not Included
Insulation Material		Polybutylene Terephthalate (PBT), Glass Filled
Number of Rows		1

Documents & Media

RESOURCE TYPE		LINK
Datasheets		CDH-09
Datasheets		ECBT2-E224053 Data Connectors, Signal, Control, Power Applications

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8538.90.6000
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

In Stock: 895

Can ship immediately.
