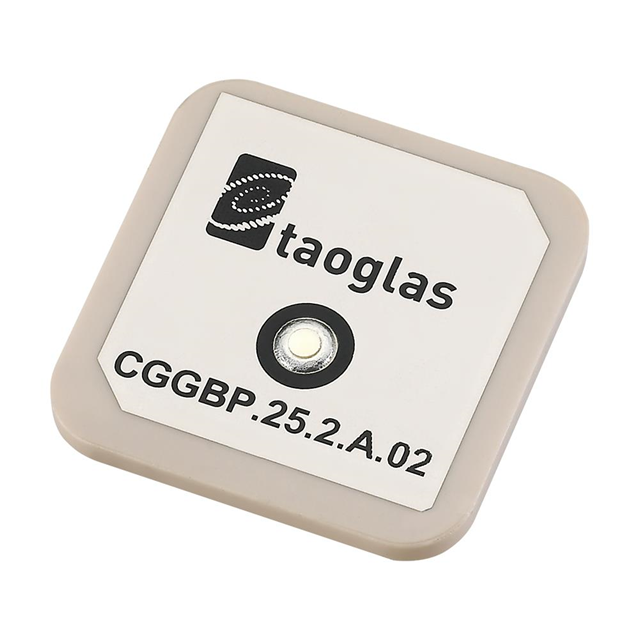

CGGBP.25.2.A.02

CGGBP.25.2.A.02

Part Number	CGGBP.25.2.A.02
Manufacturer	Taoglas
Other Part Numbers	931-CGGBP.25.2.A.02-ND 931-CGGBP.25.2.A.02
Description	GPS/GLONASS/GALILEO/BEIDOU PATCH
Detailed Description	1.561GHz, 1.575GHz, 1.602GHz GLONASS, GNSS, GPS Ceramic Patch RF Antenna 1.556GHz ~ 1.566GHz , 1.574GHz ~ 1.576GHz , 1.597GHz ~ 1.607GHz 3.25dBi, 4.35dBi, 3.44dBi Pin Surface Mount
Manufacturer Standard Lead Time	11 weeks
Datasheet	Datasheet

Product Attributes

Category		RF and Wireless RF Antennas
Manufacturer		Taoglas
Series
Packaging		Tray
Part Status		Active
Mounting Type		Surface Mount
Frequency Range		1.556GHz ~ 1.566GHz , 1.574GHz ~ 1.576GHz , 1.597GHz ~ 1.607GHz
Applications		GLONASS, GNSS, GPS
Gain		3.25dBi, 4.35dBi, 3.44dBi
Termination		Pin
Number of Bands		3
Antenna Type		Ceramic Patch
Height (Max)		0.079" (2.00mm)
Return Loss		-6dB
Frequency Group		UHF (1GHz ~ 2GHz)
Frequency (Center/Band)		1.561GHz, 1.575GHz, 1.602GHz
RF Family/Standard		Navigation

Documents & Media

RESOURCE TYPE		LINK
Datasheets		Taoglas Limited RoHS

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
California Prop 65		California Prop 65 Information
ECCN		7A994
HTSUS		8529.10.4040
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

In Stock: 102
