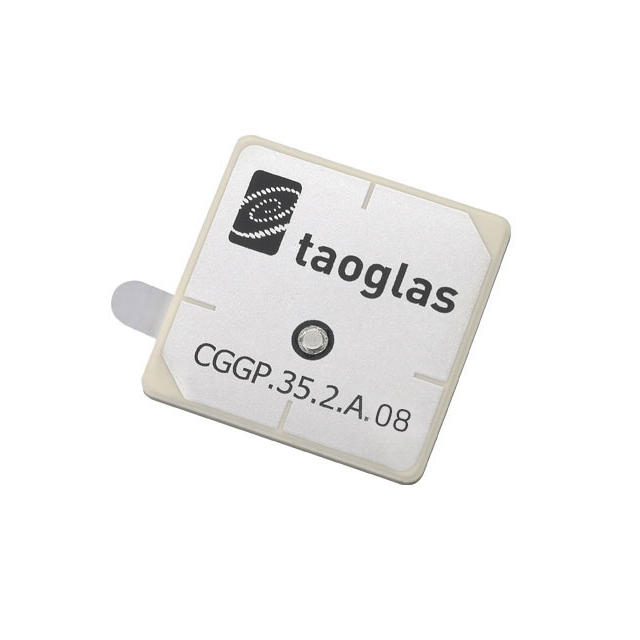

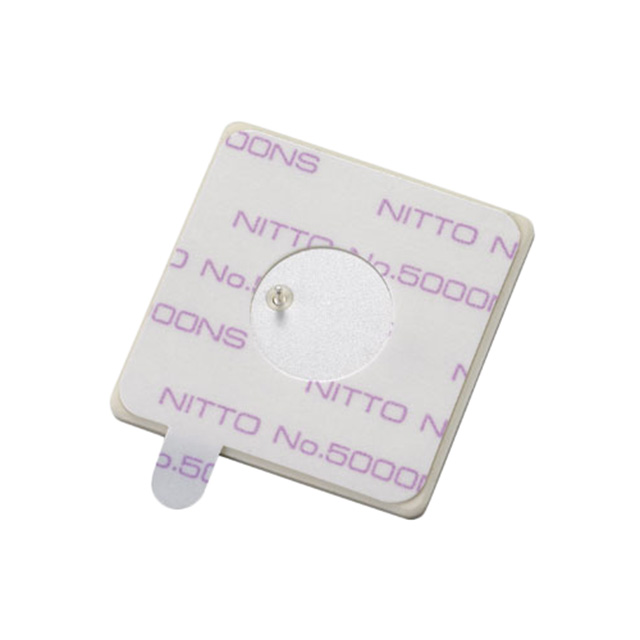

CGGP.35.2.A.08

CGGP.35.2.A.08

Part Number	CGGP.35.2.A.08
Manufacturer	Taoglas
Other Part Numbers	931-1515-ND 931-1515
Description	RF ANT 1.575/1.602GHZ CER PATCH
Detailed Description	1.575GHz, 1.602GHz Galileo, GLONASS, GPS Ceramic Patch RF Antenna 1.574GHz ~ 1.576GHz, 1.598GHz ~ 1.607GHz 4.27dBi, 4.63dBi Pin Through Hole
Manufacturer Standard Lead Time	11 weeks
Datasheet	Datasheet

Product Attributes

Category		RF and Wireless RF Antennas
Manufacturer		Taoglas
Series
Packaging		Tray
Part Status		Active
Mounting Type		Through Hole
Frequency Range		1.574GHz ~ 1.576GHz, 1.598GHz ~ 1.607GHz
Applications		Galileo, GLONASS, GPS
Gain		4.27dBi, 4.63dBi
Termination		Pin
Number of Bands		2
Antenna Type		Ceramic Patch
Height (Max)		0.079" (2.00mm)
Return Loss		-10dB
Frequency Group		UHF (1GHz ~ 2GHz)
Frequency (Center/Band)		1.575GHz, 1.602GHz
RF Family/Standard		Navigation

Documents & Media

RESOURCE TYPE		LINK
Datasheets		Taoglas Limited RoHS
Datasheets		Label 25/May/2018

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
California Prop 65		California Prop 65 Information
ECCN		7A994
HTSUS		8529.10.4040
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
