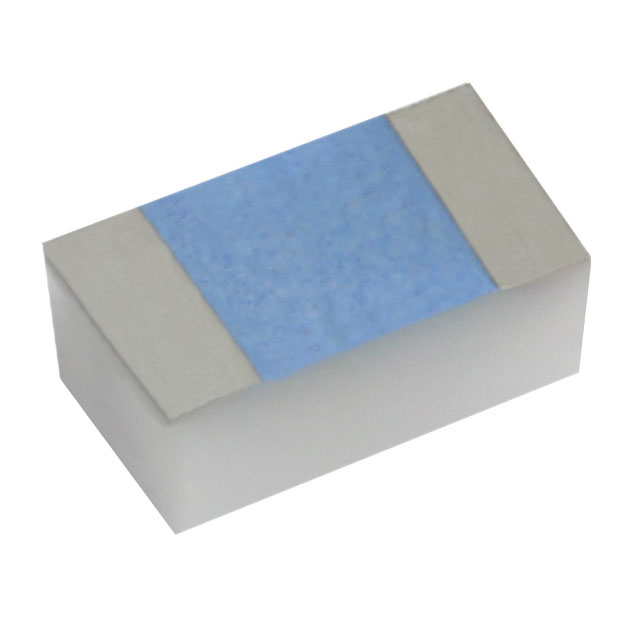

CH0402-180RGFTA

CH0402-180RGFTA

Part Number	CH0402-180RGFTA
Manufacturer	Vishay / Sfernice
Other Part Numbers	716-CH0402-180RGFTATR-ND 716-CH0402-180RGFTATR
Description	CH 0402 180U 2% F TR100
Detailed Description	180 Ohms ±2% 0.05W, 1/20W Chip Resistor 0402 (1005 Metric) RF, High Frequency Thin Film
Manufacturer Standard Lead Time	26 weeks
Datasheet	Datasheet

Product Attributes

Category		Resistors Chip Resistor - Surface Mount
Manufacturer		Vishay / Sfernice
Series		CH
Packaging		Tape & Reel (TR)
Part Status		Active
Power (Watts)		0.05W, 1/20W
Tolerance		±2%
Features		RF, High Frequency
Package / Case		0402 (1005 Metric)
Temperature Coefficient		±100ppm/°C
Size / Dimension		0.039" L x 0.024" W (1.00mm x 0.60mm)
Composition		Thin Film
Operating Temperature		-55°C ~ 155°C
Number of Terminations		2
Supplier Device Package		0402
Height - Seated (Max)		0.025" (0.63mm)
Resistance		180 Ohms

Documents & Media

RESOURCE TYPE		LINK
Datasheets		CH0402-180RGFTA

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8533.21.0030
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
