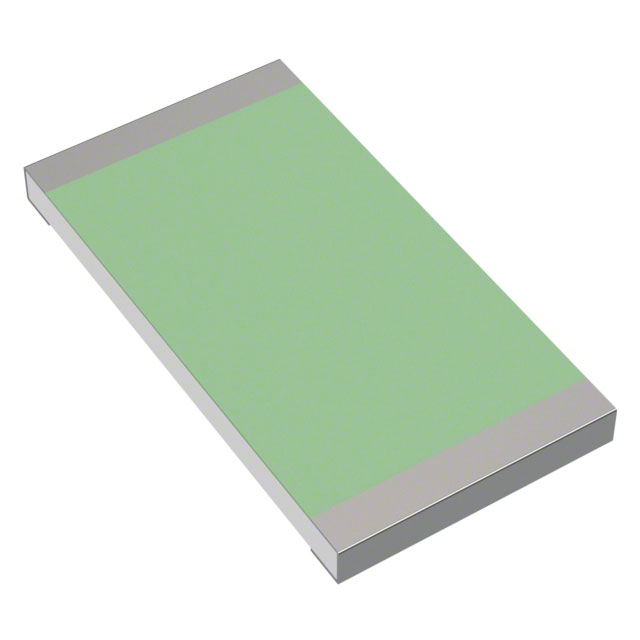

CHP2512L4R70JBTA

CHP2512L4R70JBTA

Part Number	CHP2512L4R70JBTA
Manufacturer	Vishay / Sfernice
Other Part Numbers	716-CHP2512L4R70JBTATR-ND 716-CHP2512L4R70JBTATR
Description	CHP 2512 200PPM 4U7 5% B TR100
Detailed Description	4.7 Ohms ±5% 2W Chip Resistor 2512 (6432 Metric) Automotive AEC-Q200, Moisture Resistant Thick Film
Manufacturer Standard Lead Time	35 weeks
Datasheet	Datasheet

Product Attributes

Category		Resistors Chip Resistor - Surface Mount
Manufacturer		Vishay / Sfernice
Series		CHP
Packaging		Tape & Reel (TR)
Part Status		Active
Power (Watts)		2W
Tolerance		±5%
Features		Automotive AEC-Q200, Moisture Resistant
Package / Case		2512 (6432 Metric)
Temperature Coefficient		±200ppm/°C
Size / Dimension		0.248" L x 0.130" W (6.30mm x 3.30mm)
Composition		Thick Film
Operating Temperature		-55°C ~ 155°C
Number of Terminations		2
Supplier Device Package		2512
Height - Seated (Max)		0.025" (0.63mm)
Resistance		4.7 Ohms

Documents & Media

RESOURCE TYPE		LINK
Datasheets		CHP2512L4R70JBTA
Datasheets		Epoxy chg 08/JUN/2023

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8533.21.0030
REACH Status		REACH Unaffected
