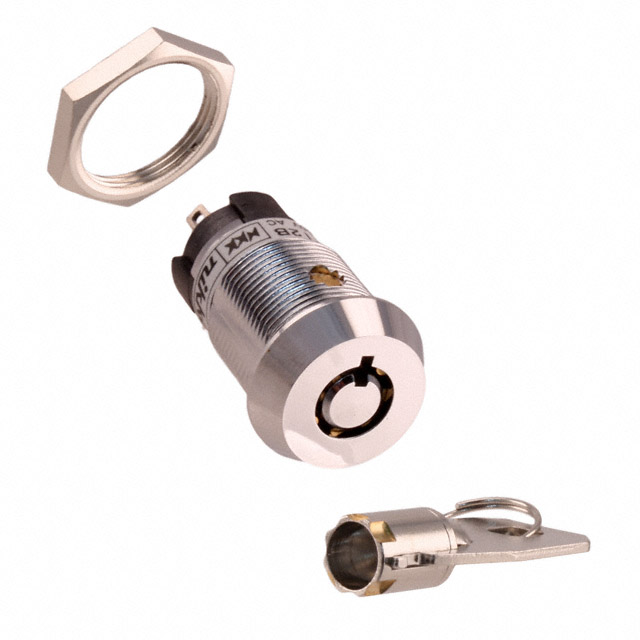

CKL12BTW01-005

CKL12BTW01-005

Part Number	CKL12BTW01-005
Manufacturer	NKK Switches
Other Part Numbers	360-2692-ND 3937-CKL12BTW01-005 CKL12BTW01-005-ND CKL12BTW01005 360-2692
Description	SWITCH KEYLOCK 2POS SPDT 3A 250V
Detailed Description	Keylock Switch 2 Position SPDT 3A (AC) 250 VAC DC Panel Mount
Manufacturer Standard Lead Time	11 weeks
Datasheet	Datasheet

Product Attributes

Category		Switches Keylock Switches
Manufacturer		NKK Switches
Series		CK
Packaging		Box
Part Status		Active
Features		Epoxy Sealed Terminals
Contact Finish		Silver
Current Rating (Amps)		3A (AC)
Mounting Type		Panel Mount
Circuit		SPDT
Switch Function		On-On
Operating Temperature		-25°C ~ 70°C
Termination Style		Solder Lug
Actuator Type		Tubular Key
Angle of Throw		90°
Key Removable Positions		1 only
Panel Cutout Dimensions		Circular - 19.00mm Dia
Contact Material		Silver (Ag)
Contact Timing		Non-Shorting (BBM)
Voltage Rating - AC		250 V
Number of Positions		2

Documents & Media

RESOURCE TYPE		LINK
Datasheets		CKL12BTW01-005
Datasheets		RoHS Cert - Switches & Pushbuttons
Datasheets		NKK Switches ODC Cert
Datasheets		NKK Switches PFOS & PFOA Free Cert

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.50.9020
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

In Stock: 28

Can ship immediately.
