Part Number | CLA50E1200HB |
---|---|
Manufacturer | Littelfuse / IXYS RF |
Other Part Numbers | CLA50E1200HB-ND |
Description | SCR 1.2KV 79A TO247AD |
Detailed Description | SCR 1.2 kV 79 A Standard Recovery Through Hole TO-247AD |
Manufacturer Standard Lead Time | 20 weeks |
Datasheet | Datasheet |
Category | ||
---|---|---|
Manufacturer | Littelfuse / IXYS RF | |
Series | ||
Packaging | Tube | |
Part Status | Active | |

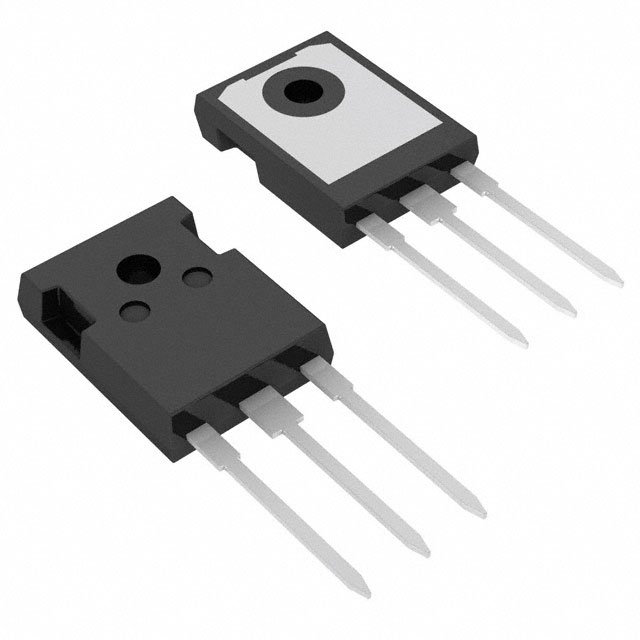

Package / Case | TO-247-3 | |
Mounting Type | Through Hole | |
SCR Type | Standard Recovery | |
Operating Temperature | -40°C ~ 150°C | |
Current - Hold (Ih) (Max) | 75 mA | |
Current - Gate Trigger (Igt) (Max) | 50 mA | |
Current - Non Rep. Surge 50, 60Hz (Itsm) | 550A, 590A | |
Current - On State (It (AV)) (Max) | 50 A | |
Voltage - Gate Trigger (Vgt) (Max) | 1.5 V | |
Voltage - On State (Vtm) (Max) | 1.6 V | |
Current - Off State (Max) | 50 µA | |
Supplier Device Package | TO-247AD | |
Current - On State (It (RMS)) (Max) | 79 A | |
Voltage - Off State | 1.2 kV |
RESOURCE TYPE | LINK | |
---|---|---|
Datasheets | Thyristor/Diode 27/APR/2023 |
ATTRIBUTE | DESCRIPTION | |
---|---|---|
California Prop 65 | California Prop 65 Information | |
ECCN | EAR99 | |
HTSUS | 8541.30.0080 | |
Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
REACH Status | REACH Unaffected | |
RoHS Status | ROHS3 Compliant |
QUANTITY | UNIT PRICE | EXT PRICE |
---|---|---|
1 | $6.23 | $6.23 |
30 | $4.94 | $148.20 |
120 | $4.23 | $507.60 |
510 | $3.76 | $1,917.60 |
1,020 | $3.22 | $3,284.40 |
2,010 | $3.03 | $6,090.30 |
