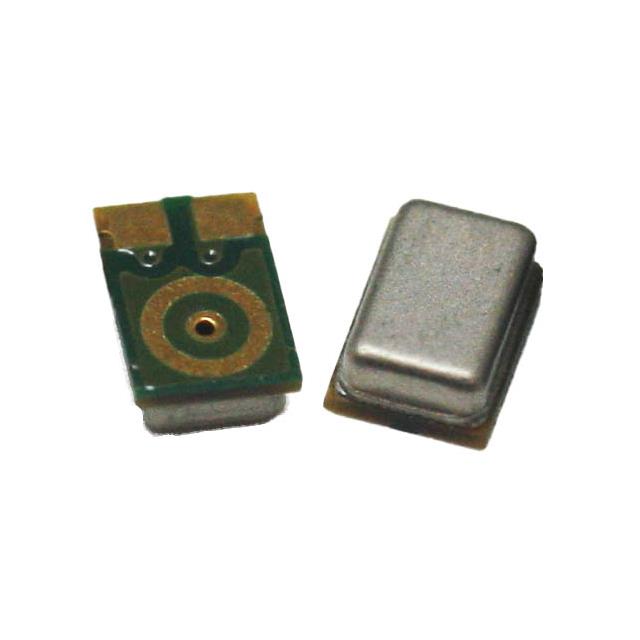

CM02M-03S38-MA-5

CM02M-03S38-MA-5

Part Number	CM02M-03S38-MA-5
Manufacturer	Challenge Electronics
Other Part Numbers	2603-CM02M-03S38-MA-5TR-ND 2603-CM02M-03S38-MA-5CT-ND 2603-CM02M-03S38-MA-5DKR-ND 2603-CM02M-03S38-MA-5DKR 2603-CM02M-03S38-MA-5TR 2603-CM02M-03S38-MA-5CT
Description	ANALOG OMNI MEMS MIC
Detailed Description	100 Hz ~ 20 kHz Analog Microphone MEMS (Silicon) 1.6 V ~ 3.6 V Omnidirectional (-38dB ±1dB @ 94dB SPL) Solder Pads
Manufacturer Standard Lead Time	22 weeks
Datasheet	Datasheet

Product Attributes

Category		Audio Products Microphones
Manufacturer		Challenge Electronics
Series
Packaging		Tape & Reel (TR) Cut Tape (CT)
Part Status		Active
Output Type		Analog
Size / Dimension		0.108" L x 0.073" W (2.75mm x 1.85mm)
Sensitivity		-38dB ±1dB @ 94dB SPL
Shape		Rectangular
Type		MEMS (Silicon)
S/N Ratio		59dB
Termination		Solder Pads
Direction		Omnidirectional
Port Location		Bottom
Height (Max)		0.038" (0.97mm)
Voltage - Rated		2 V
Impedance		450 Ohms
Current - Supply		150 µA
Voltage Range		1.6 V ~ 3.6 V
Frequency Range		100 Hz ~ 20 kHz

Documents & Media

RESOURCE TYPE		LINK
Datasheets		CM02M-03S38-MA-5

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Affected
RoHS Status		ROHS3 Compliant

In Stock: 5000

Can ship immediately.

QUANTITY

PACKAGING	QUANTITY	UNIT PRICE	EXT PRICE
Cut Tape (CT)	1	$1.21	$1.21
Total Amount: $1.21

Tape & Reel (TR)

QUANTITY	UNIT PRICE	EXT PRICE
5,000	$0.49	$2,450.00
10,000	$0.47	$4,700.00

Cut Tape (CT)

QUANTITY	UNIT PRICE	EXT PRICE
1	$1.21	$1.21
5	$1.17	$5.85
10	$1.10	$11.00
50	$0.91	$45.50
100	$0.76	$76.00
250	$0.74	$185.00
500	$0.62	$310.00
1,000	$0.55	$550.00
