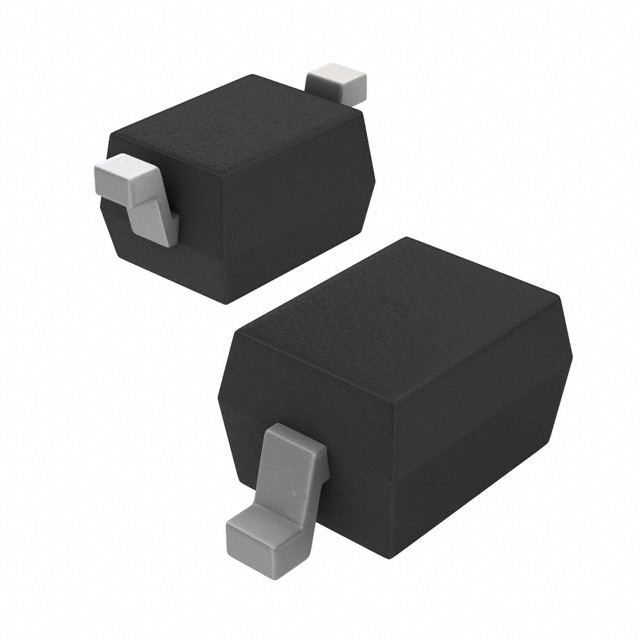

CMDZ5246B TR PBFREE

CMDZ5246B TR PBFREE

Part Number	CMDZ5246B TR PBFREE
Manufacturer	Central Semiconductor
Other Part Numbers	1514-CMDZ5246BTRPBFREETR-ND CMDZ5246B DKR-ND CMDZ5246B DKR 1514-CMDZ5246BTRPBFREECT CMDZ5246BDKR CMDZ5246B CT CMDZ5246BCT-ND CMDZ5246BCT CMDZ5246BTR-ND CMDZ5246B TR 1514-CMDZ5246BTRPBFREETR CMDZ5246BTR 1514-CMDZ5246BTRPBFREEDKR CMDZ5246BDKR-ND CMDZ5246B CT-ND CMDZ5246B TR-ND
Description	DIODE ZENER 16V 250MW SOD323
Detailed Description	Zener Diode 16 V 250 mW ±5% Surface Mount SOD-323
Manufacturer Standard Lead Time	20 weeks

Product Attributes

Category		Discrete Semiconductor Products Diodes Zener Single Zener Diodes
Manufacturer		Central Semiconductor
Series
Packaging		Tape & Reel (TR)
Part Status		Active
Tolerance		±5%
Package / Case		SC-76, SOD-323
Mounting Type		Surface Mount
Operating Temperature		-65°C ~ 150°C
Voltage - Zener (Nom) (Vz)		16 V
Impedance (Max) (Zzt)		17 Ohms
Supplier Device Package		SOD-323
Power - Max		250 mW
Voltage - Forward (Vf) (Max) @ If		900 mV @ 10 mA
Current - Reverse Leakage @ Vr		100 nA @ 12 V

Documents & Media

RESOURCE TYPE		LINK
Datasheets		CMDZ5246B TR PBFREE
Datasheets		RoHS Cert

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8541.10.0050
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
