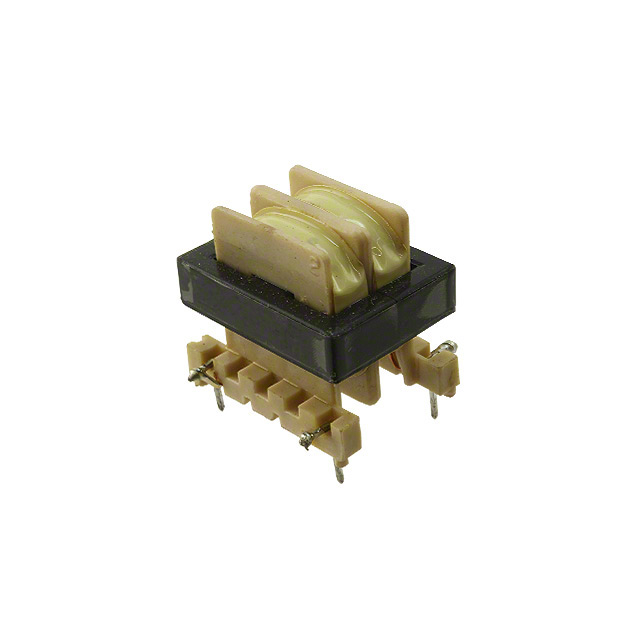

CME2425-9

CME2425-9

Part Number	CME2425-9
Manufacturer	Triad Magnetics
Other Part Numbers	237-1228-ND 237-1228-NDR 10541 237-1228
Description	CMC 67.5MH 400MA 2LN TH ESD
Detailed Description	67.5 mH @ 10 kHz 2 Line Common Mode Choke Through Hole 400mA DCR 2.02Ohm
Manufacturer Standard Lead Time	23 weeks
Datasheet	Datasheet

Product Attributes

Category		Filters Common Mode Chokes
Manufacturer		Triad Magnetics
Series		CME
Packaging		Bulk
Part Status		Active
Package / Case		Vertical, 4 PC Pin
Filter Type		Power Line
Size / Dimension		1.050" L x 1.050" W (26.67mm x 26.67mm)
Mounting Type		Through Hole
Number of Lines		2
Operating Temperature		-40°C ~ 80°C
Approval Agency		CSA, IEC, UL, VDE
Height (Max)		1.075" (27.31mm)
Voltage Rating - AC		250V
Current Rating (Max)		400mA
DC Resistance (DCR) (Max)		2.02Ohm
Inductance @ Frequency		67.5 mH @ 10 kHz

Documents & Media

RESOURCE TYPE		LINK
Datasheets		CME2425-9
Datasheets		Standard Part Warranty Terms
Datasheets		RoHS Statement

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8548.00.0000
Moisture Sensitivity Level (MSL)		Not Applicable
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
