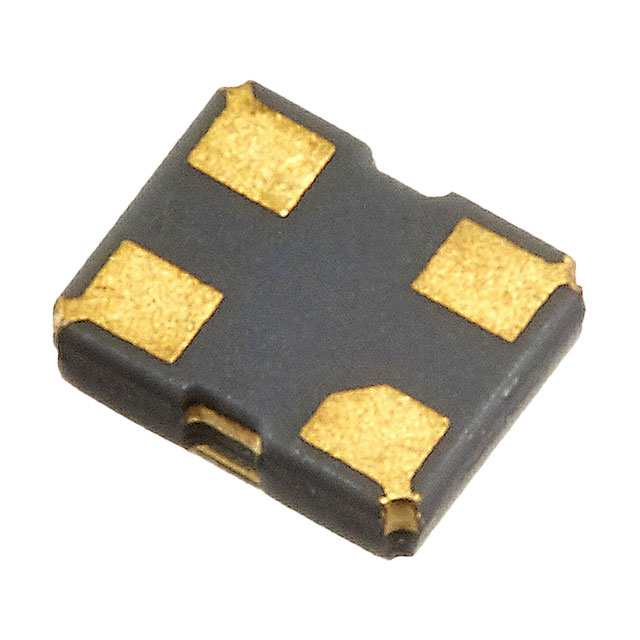

CO4305-12.000-T-TR

CO4305-12.000-T-TR

Part Number	CO4305-12.000-T-TR
Manufacturer	Raltron
Other Part Numbers	2151-CO4305-12.000-T-TR-ND 2151-CO4305-12.000-T-TRCT-ND 2151-CO4305-12.000-T-TRDKR-ND -2344-CO4305-12.000-T-CT -2344-CO4305-12.000-T-CT-ND -2344-CO4305-12.000-T-TRCT 2151-CO4305-12.000-T-TRDKR 2151-CO4305-12.000-T-TRCT 2151-CO4305-12.000-T-TR
Description	XTAL OSC XO 12.0000MHZ CMOS SMD
Detailed Description	12 MHz XO (Standard) CMOS Oscillator 3.3V Enable/Disable 4-SMD, No Lead
Manufacturer Standard Lead Time	10 weeks
Datasheet	Datasheet

Product Attributes

Category		Crystals, Oscillators, Resonators Oscillators
Manufacturer		Raltron
Series		CO43
Packaging		Tape & Reel (TR) Cut Tape (CT)
Part Status		Active
Package / Case		4-SMD, No Lead
Size / Dimension		0.276" L x 0.197" W (7.00mm x 5.00mm)
Mounting Type		Surface Mount
Output		CMOS
Function		Enable/Disable
Type		XO (Standard)
Operating Temperature		-10°C ~ 70°C
Frequency Stability		±50ppm
Voltage - Supply		3.3V
Current - Supply (Max)		25mA
Height - Seated (Max)		0.071" (1.80mm)
Frequency		12 MHz
Base Resonator		Crystal

Documents & Media

RESOURCE TYPE		LINK
Datasheets		CO4305-12.000-T-TR

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8542.39.0001
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
