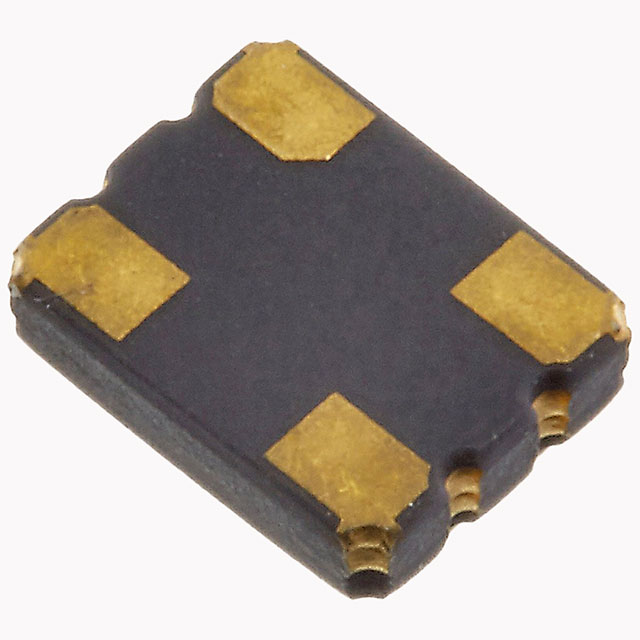

COM13025-3.6864-EXT-T-TR

COM13025-3.6864-EXT-T-TR

Part Number	COM13025-3.6864-EXT-T-TR
Manufacturer	Raltron
Other Part Numbers	2151-COM13025-3.6864-EXT-T-TR-ND 2151-COM13025-3.6864-EXT-T-TRCT-ND 2151-COM13025-3.6864-EXT-T-TRDKR-ND 2151-COM13025-3.6864-EXT-T-TR 2151-COM13025-3.6864-EXT-T-TRCT 2151-COM13025-3.6864-EXT-T-TRDKR -2344-COM13025-3.6864-EXT-T-CT
Description	XTAL OSC XO 3.6864MHZ HCMOS SMD
Detailed Description	3.6864 MHz XO (Standard) HCMOS Oscillator 3.3V Enable/Disable 4-SMD, No Lead
Manufacturer Standard Lead Time	12 weeks
Datasheet	Datasheet

Product Attributes

Category		Crystals, Oscillators, Resonators Oscillators
Manufacturer		Raltron
Series		COM1
Packaging		Tape & Reel (TR) Cut Tape (CT)
Part Status		Active
Package / Case		4-SMD, No Lead
Size / Dimension		0.126" L x 0.098" W (3.20mm x 2.50mm)
Mounting Type		Surface Mount
Output		HCMOS
Function		Enable/Disable
Type		XO (Standard)
Operating Temperature		-40°C ~ 85°C
Frequency Stability		±25ppm
Voltage - Supply		3.3V
Current - Supply (Max)		7mA
Height - Seated (Max)		0.039" (1.00mm)
Frequency		3.6864 MHz
Base Resonator		Crystal

Documents & Media

RESOURCE TYPE		LINK
Datasheets		COM13025-3.6864-EXT-T-TR

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8542.39.0001
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
