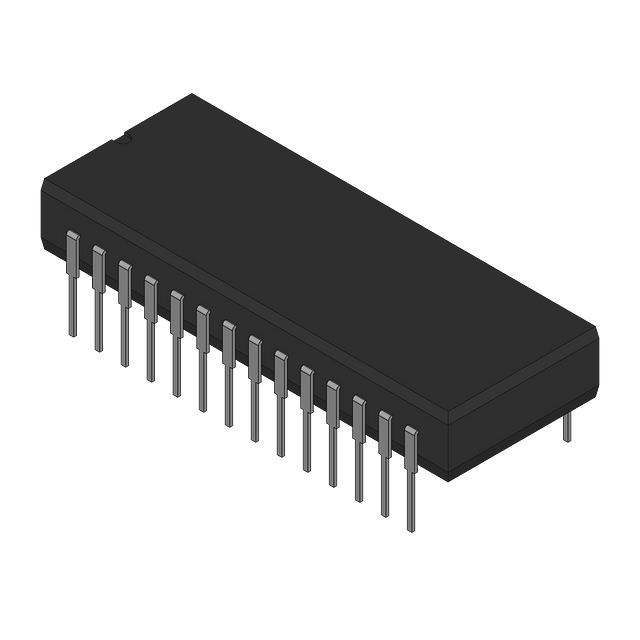

COP8AME9ENA8 _ Microcontrollers_Embedded_Integrated Circuits (ICs)

Part Number	COP8AME9ENA8
Manufacturer	National Semiconductor
Other Part Numbers	2156-COP8AME9ENA8-ND 2156-COP8AME9ENA8 NATNSCCOP8AME9ENA8
Description	IC MCU 8BIT 8KB FLASH 28DIP
Detailed Description	COP8 COP8™ 8A Microcontroller IC 8-Bit 20MHz 8KB (8K x 8) FLASH 28-DIP

Category		Integrated Circuits (ICs) Embedded Microcontrollers
Manufacturer		National Semiconductor
Series		COP8™ 8A
Packaging		Bulk
Part Status		Active
Package / Case		28-DIP (0.600", 15.24mm)
Mounting Type		Through Hole
Speed		20MHz
Program Memory Size		8KB (8K x 8)
RAM Size		512 x 8
Operating Temperature		-40°C ~ 85°C
Oscillator Type		Internal
Program Memory Type		FLASH
Core Processor		COP8
Data Converters		A/D 6x10b
Core Size		8-Bit
Voltage - Supply (Vcc/Vdd)		4.5V ~ 5.5V
Connectivity		Microwire/Plus (SPI), UART/USART
Peripherals		Brown-out Detect/Reset, POR, PWM, Temp Sensor, WDT
Supplier Device Package		28-DIP
Number of I/O		21
DigiKey Programmable		Not Verified

RESOURCE TYPE		LINK

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8542.31.0001
Moisture Sensitivity Level (MSL)		3 (168 Hours)
REACH Status		Vendor Undefined
RoHS Status		RoHS non-compliant
