COP8CBE9HVA9 _ Microcontrollers_Embedded_Integrated Circuits (ICs)

Part Number	COP8CBE9HVA9
Manufacturer	National Semiconductor
Other Part Numbers	2156-COP8CBE9HVA9-ND NATNSCCOP8CBE9HVA9 2156-COP8CBE9HVA9
Description	IC MCU 8BIT 8KB FLASH 44PLCC
Detailed Description	COP8 COP8™ 8C Microcontroller IC 8-Bit 6.67MHz 8KB (8K x 8) FLASH 44-PLCC (16.59x16.59)

Category		Integrated Circuits (ICs) Embedded Microcontrollers
Manufacturer		National Semiconductor
Series		COP8™ 8C
Packaging		Bulk
Part Status		Active

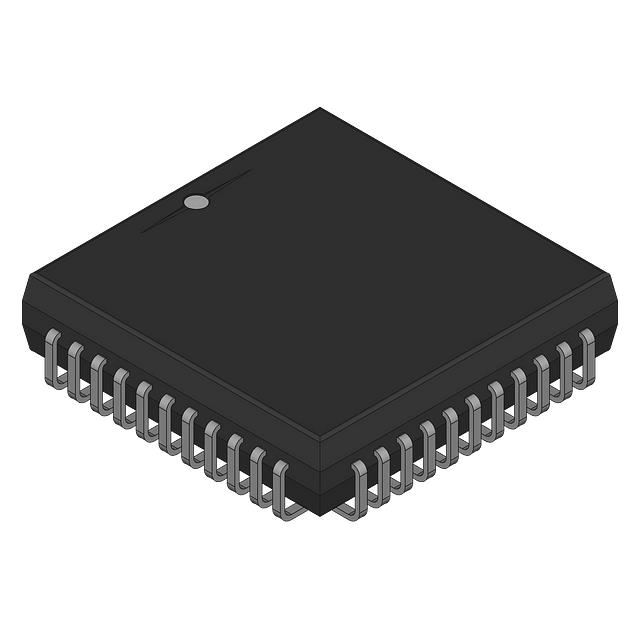

Package / Case		44-LCC (J-Lead)
Mounting Type		Surface Mount
Speed		6.67MHz
Program Memory Size		8KB (8K x 8)
RAM Size		256 x 8
Operating Temperature		0°C ~ 70°C (TA)
Oscillator Type		Internal
Program Memory Type		FLASH
Core Processor		COP8
Data Converters		A/D 16x10b
Core Size		8-Bit
Voltage - Supply (Vcc/Vdd)		2.7V ~ 5.5V
Connectivity		Microwire/Plus (SPI), UART/USART
Peripherals		Brown-out Detect/Reset, POR, PWM, WDT
Supplier Device Package		44-PLCC (16.59x16.59)
Number of I/O		37
DigiKey Programmable		Not Verified

RESOURCE TYPE		LINK

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8542.31.0001
Moisture Sensitivity Level (MSL)		2A (4 Weeks)
REACH Status		REACH Affected
RoHS Status		RoHS non-compliant
