COP8SBR9HVA8/NOPB _ Microcontrollers_Embedded_Integrated Circuits (ICs)

Part Number	COP8SBR9HVA8/NOPB
Manufacturer	National Semiconductor
Other Part Numbers	2156-COP8SBR9HVA8/NOPB-14-ND 2156-COP8SBR9HVA8/NOPB-14
Description	COP8SBR9 8-BIT CMOS FLASH MICROC
Detailed Description	COP8 COP8™ 8S Microcontroller IC 8-Bit 20MHz 32KB (32K x 8) FLASH 44-PLCC (16.58x16.58)

Category		Integrated Circuits (ICs) Embedded Microcontrollers
Manufacturer		National Semiconductor
Series		COP8™ 8S
Packaging		Bulk
Part Status		Active

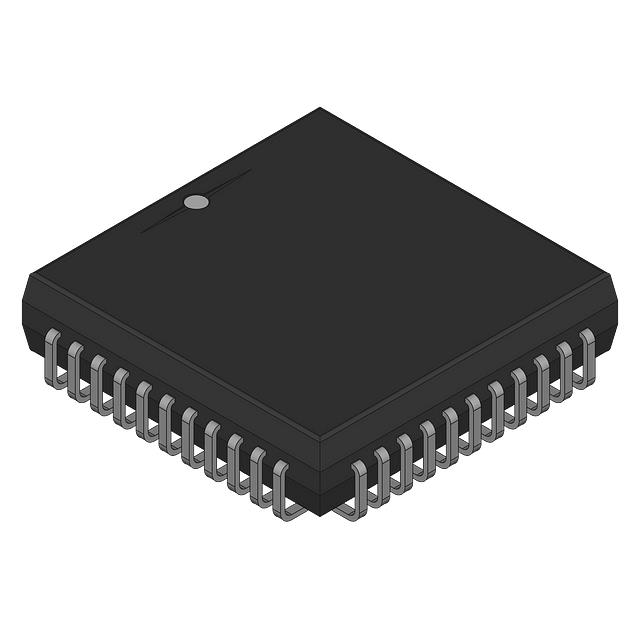

Package / Case		44-LCC (J-Lead)
Mounting Type		Surface Mount
Speed		20MHz
Program Memory Size		32KB (32K x 8)
RAM Size		1K x 8
Operating Temperature		-40°C ~ 85°C (TA)
Oscillator Type		Internal
Program Memory Type		FLASH
Core Processor		COP8
Core Size		8-Bit
Voltage - Supply (Vcc/Vdd)		2.7V ~ 5.5V
Connectivity		Microwire/Plus (SPI), UART/USART
Peripherals		Brown-out Detect/Reset, POR, PWM, WDT
Supplier Device Package		44-PLCC (16.58x16.58)
Number of I/O		37
DigiKey Programmable		Not Verified

RESOURCE TYPE		LINK

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8542.31.0001
Moisture Sensitivity Level (MSL)		Vendor Undefined
REACH Status		REACH Unaffected
