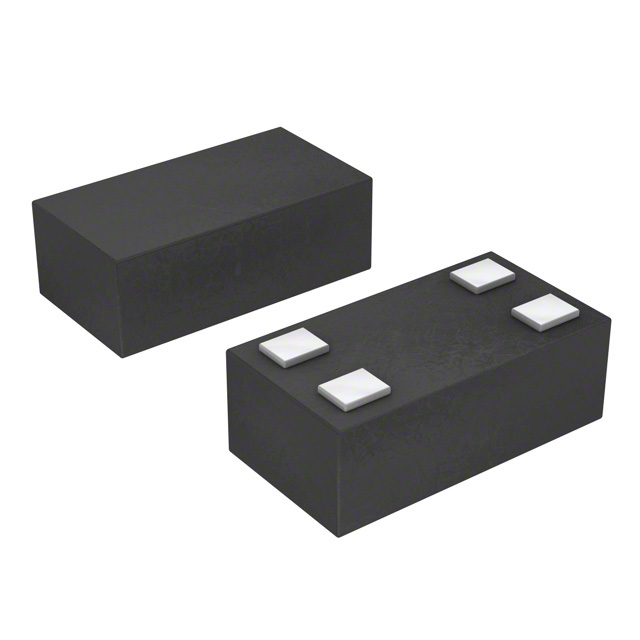

CP0603A2442CWTR

Part Number
CP0603A2442CWTR
Manufacturer KYOCERA AVX
Other Part Numbers
CP0603A2442CWTR-ND
Description RF DIR COUPLER 2.4-2.484GHZ 0603
Detailed Description RF Directional Coupler Wireless LAN 2.4GHz ~ 2.484GHz 12.5 ± 1dB 3W 0603 (1608 Metric)
Manufacturer Standard Lead Time 14 weeks
Datasheet Datasheet

Product Attributes

Category
Manufacturer KYOCERA AVX
Series
Packaging
Tape & Reel (TR)
Part Status Active
Package / Case 0603 (1608 Metric)
Frequency 2.4GHz ~ 2.484GHz
Insertion Loss 0.65dB
Applications Wireless LAN
Power - Max 3W
Coupling Factor 12.5 ± 1dB
Coupler Type Standard
Isolation -20dB
Return Loss -31dB
Supplier Device Package 0603

Documents & Media

RESOURCE TYPE LINK
Datasheets CP0603A2442CWTR

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8536.30.8000
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
RoHS Status RoHS non-compliant
