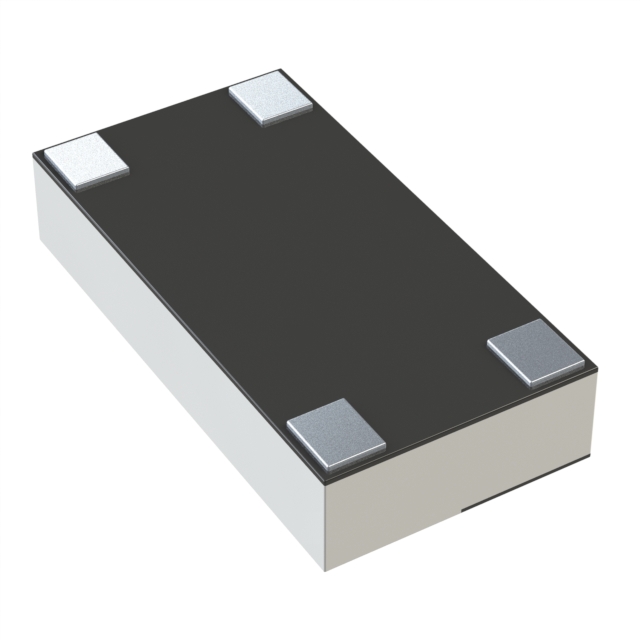

CP2816A0540ANTR

Part Number
CP2816A0540ANTR
Manufacturer KYOCERA AVX
Other Part Numbers
478-CP2816A0540ANTR-ND
478-CP2816A0540ANTRCT-ND
478-CP2816A0540ANTRDKR-ND
478-CP2816A0540ANTRCT
478-CP2816A0540ANTRDKR
478-CP2816A0540ANTR
Description CP2816 SERIES, 20W THIN FILM COU
Detailed Description RF Directional Coupler General Purpose 480MHz ~ 600MHz -10 ± 1.2dB 20W 4-SMD, No Lead
Manufacturer Standard Lead Time 16 weeks

Product Attributes

Category
Manufacturer KYOCERA AVX
Series
CP2816
Packaging
Tape & Reel (TR)
Cut Tape (CT)
Part Status Active
Package / Case 4-SMD, No Lead
Frequency 480MHz ~ 600MHz
Insertion Loss -0.9dB
Applications General Purpose
Power - Max 20W
Coupling Factor -10 ± 1.2dB
Coupler Type Standard
Supplier Device Package 4-SMD

Documents & Media

RESOURCE TYPE LINK

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN 5A991G
HTSUS 8517.79.0000
Moisture Sensitivity Level (MSL) 1 (Unlimited)
RoHS Status ROHS3 Compliant

In Stock: 500

Can ship immediately.
