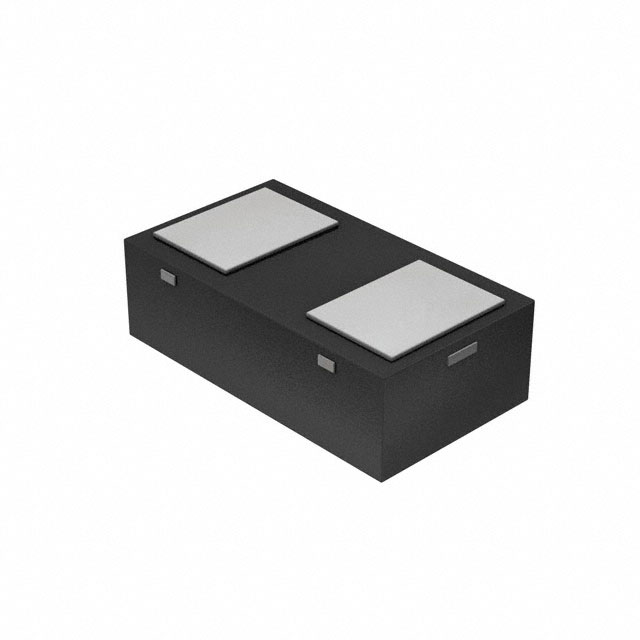

CPINUC5206-HF

Part Number
CPINUC5206-HF
Manufacturer Comchip Technology
Other Part Numbers
641-1770-2-ND
641-1770-1-ND
641-1770-6-ND
641-1770-6
641-1770-1
641-1770-2
Description RF DIODE PIN 180V 300MW 0603C
Detailed Description RF Diode PIN - Single 180V 300 mW 0603C/SOD-523F
Manufacturer Standard Lead Time 10 weeks

Product Attributes

Category
Manufacturer Comchip Technology
Series
Packaging
Tape & Reel (TR)
Cut Tape (CT)
Part Status Active
Package / Case 2-SMD, No Lead
Diode Type PIN - Single
Operating Temperature 150°C (TJ)
Capacitance @ Vr, F 0.22pF @ 40V, 100MHz
Resistance @ If, F 1.5Ohm @ 50mA, 100MHz
Voltage - Peak Reverse (Max) 180V
Supplier Device Package 0603C/SOD-523F
Power Dissipation (Max) 300 mW

Documents & Media

RESOURCE TYPE LINK
Datasheets CPINUC5206-HF
Datasheets Comchip Technology RoHS Cert

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8541.10.0070
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
RoHS Status ROHS3 Compliant

Available To Order

PACKAGING QUANTITY UNIT PRICE EXT PRICE
{{ p.name }} {{ numberFormat(p.buyQty) }} {{ priceFormat(p.unitPrice) }} {{ priceFormat(p.totalPrice) }}
Total Amount: {{ priceFormat(quotes.total) }} (including {{ priceFormat(quotes.fee) }} fee)

{{ package.name }}

QUANTITY UNIT PRICE EXT PRICE
{{ numberFormat(price.break_quantity) }} {{ priceFormat(price.unit_price) }} {{ priceFormat(price.break_quantity * price.unit_price) }}
Detailed pricing is currently unavailable.
Detailed packaging information is temporarily unavailable.
