CQ330E _ Current Sensors_Sensors, Transducers

Part Number	CQ330E
Manufacturer	Asahi Kasei Microdevices Corporation (AKM)
Other Part Numbers	974-1138-2-ND 974-1138-1-ND CQ330E-ND 974-1138-2 974-1138-1 974-1138-6
Description	SENSOR CURRENT HALL 20.5A AC/DC
Detailed Description	Current Sensor 20.5A 1 Channel Hall Effect, Open Loop Bidirectional 24-LSSOP (0.220", 5.60mm Width), 10 Leads

Category		Sensors, Transducers Current Sensors
Manufacturer		Asahi Kasei Microdevices Corporation (AKM)
Series		CQ
Packaging		Tape & Reel (TR) Cut Tape (CT)
Part Status		Obsolete

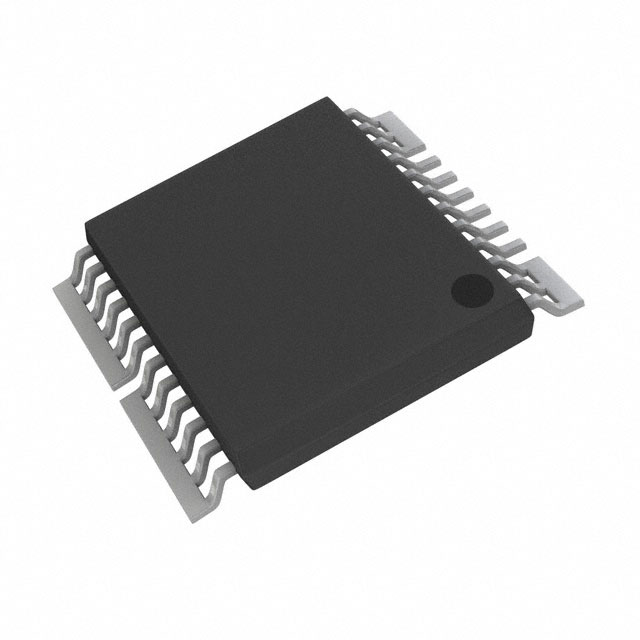

Package / Case		24-LSSOP (0.220", 5.60mm Width), 10 Leads
Polarization		Bidirectional
Sensitivity		200mv/A
Mounting Type		Surface Mount
Output		Ratiometric, Voltage
Frequency		1MHz
Accuracy		±0.5%
Operating Temperature		-40°C ~ 90°C
Voltage - Supply		4.5V ~ 5.5V
Response Time		0.5µs
Sensor Type		Hall Effect, Open Loop
Linearity		±0.6%
For Measuring		AC/DC
Current - Supply (Max)		11mA
Current - Sensing		20.5A
Supplier Device Package		24-VSOP
Number of Channels		1

RESOURCE TYPE		LINK
Datasheets		CQ330E

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8542.39.0001
Moisture Sensitivity Level (MSL)		2A (4 Weeks)
RoHS Status		ROHS3 Compliant

This product is no longer manufactured.
