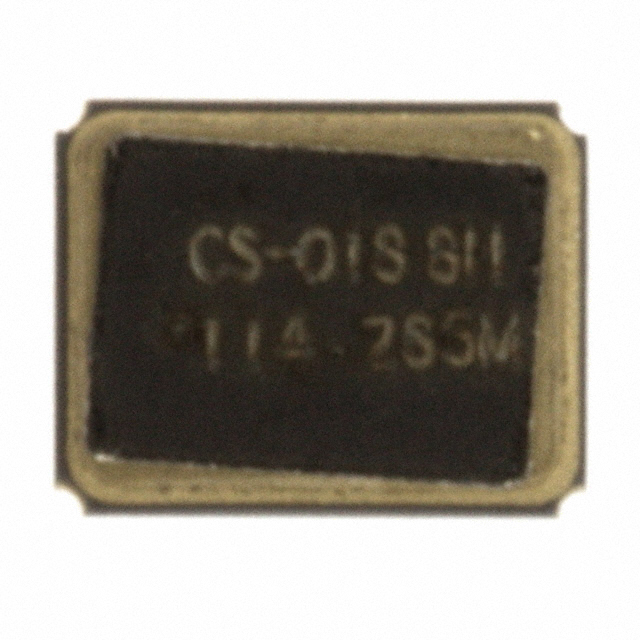

CS-018-114.285M

CS-018-114.285M

Part Number	CS-018-114.285M
Manufacturer	Connor Winfield
Other Part Numbers	CW646TR-ND CW646CT-ND CW646DKR-ND CW645DKR CS-018-114.285 M-T CW646TR CS018114.285M CW646CT CW646DKR
Description	CRYSTAL 114.2850MHZ 18PF SMD
Detailed Description	114.285 MHz ±100ppm Crystal 18pF 80 Ohms 4-SMD, No Lead
Manufacturer Standard Lead Time	10 weeks
Datasheet	Datasheet

Product Attributes

Category		Crystals, Oscillators, Resonators Crystals
Manufacturer		Connor Winfield
Series		CS-018
Packaging		Tape & Reel (TR) Cut Tape (CT)
Part Status		Active

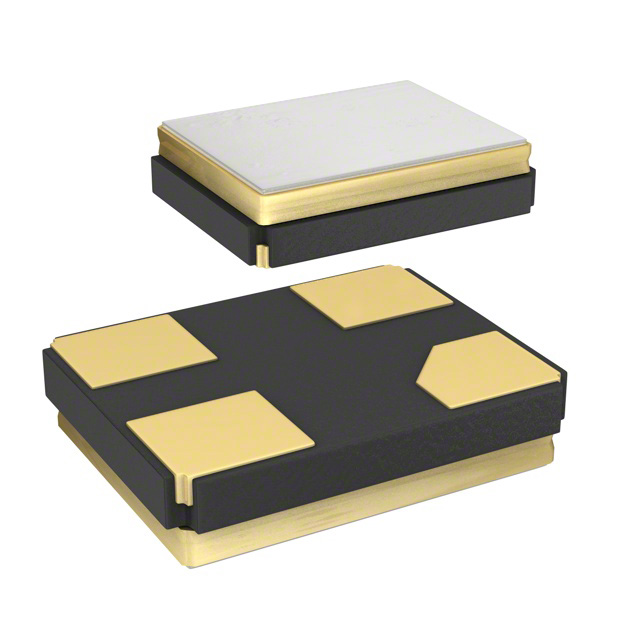

Package / Case		4-SMD, No Lead
Load Capacitance		18pF
Size / Dimension		0.126" L x 0.098" W (3.20mm x 2.50mm)
Mounting Type		Surface Mount
Type		MHz Crystal
Operating Temperature		-40°C ~ 85°C
Frequency Stability		±100ppm
Frequency Tolerance		±100ppm
Operating Mode		3rd Overtone
Height - Seated (Max)		0.031" (0.80mm)
ESR (Equivalent Series Resistance)		80 Ohms
Frequency		114.285 MHz

Documents & Media

RESOURCE TYPE		LINK
Datasheets		CS-018-114.285M
Datasheets		CS Series
Datasheets		CS Series Top

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8541.60.0060
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

In Stock: 2511

Can ship immediately.
