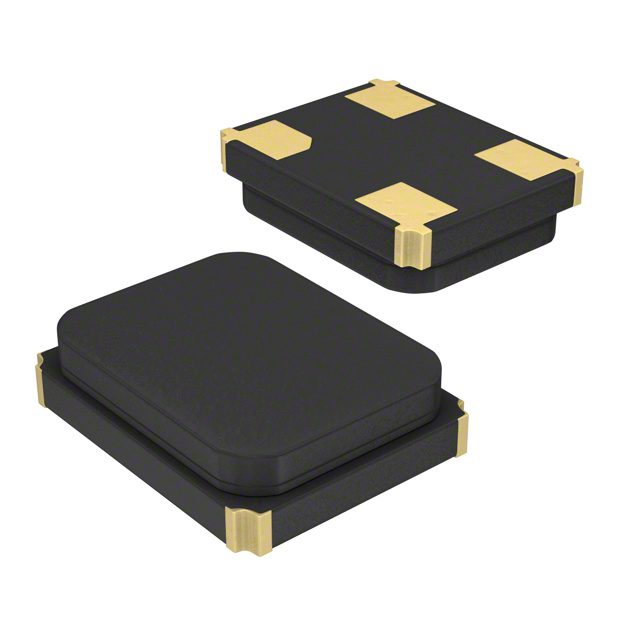

CS-044-054.0M

CS-044-054.0M

Part Number	CS-044-054.0M
Manufacturer	Connor Winfield
Other Part Numbers	CW852TR-ND CW852CT-ND CW852DKR-ND CW852DKR CW852CT CW852TR
Description	CRYSTAL 54.0000MHZ 8PF SMD
Detailed Description	54 MHz ±15ppm Crystal 8pF 20 Ohms 4-SMD, No Lead
Manufacturer Standard Lead Time	10 weeks

Product Attributes

Category		Crystals, Oscillators, Resonators Crystals
Manufacturer		Connor Winfield
Series		CS-044
Packaging		Tape & Reel (TR) Cut Tape (CT)
Part Status		Active
Package / Case		4-SMD, No Lead
Load Capacitance		8pF
Size / Dimension		0.126" L x 0.098" W (3.20mm x 2.50mm)
Mounting Type		Surface Mount
Type		MHz Crystal
Operating Temperature		-40°C ~ 85°C
Frequency Stability		±25ppm
Frequency Tolerance		±15ppm
Operating Mode		Fundamental
Height - Seated (Max)		0.031" (0.80mm)
ESR (Equivalent Series Resistance)		20 Ohms
Frequency		54 MHz

Documents & Media

RESOURCE TYPE		LINK
Datasheets		CS-044-054.0M

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8541.60.0060
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

In Stock: 13661

Can ship immediately.
