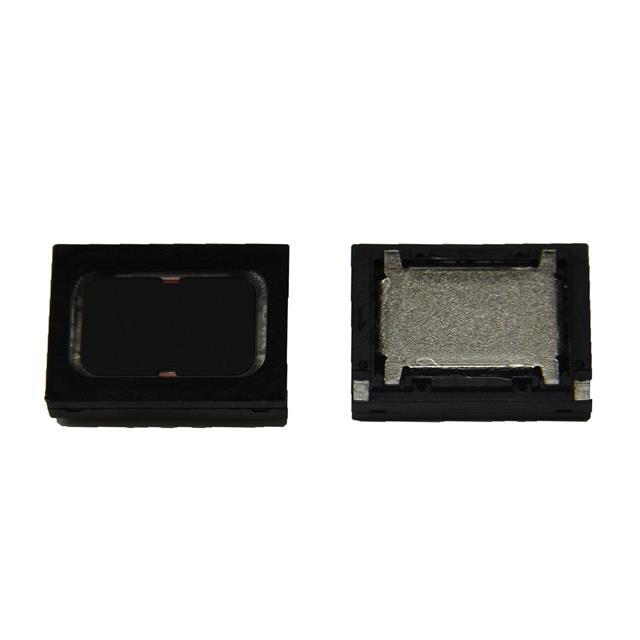

CS18-01P95-04-1X

CS18-01P95-04-1X

Part Number	CS18-01P95-04-1X
Manufacturer	Challenge Electronics
Other Part Numbers	2603-CS18-01P95-04-1X-ND 2603-CS18-01P95-04-1X
Description	SPEAKER 8OHM 1W TOP PORT 100DB
Detailed Description	8 Ohms General Purpose Speaker 1 W 950 Hz ~ 20 kHz Top Rectangular
Manufacturer Standard Lead Time	22 weeks
Datasheet	Datasheet

Product Attributes

Category		Audio Products Speakers
Manufacturer		Challenge Electronics
Series
Packaging		Tray
Part Status		Active
Size / Dimension		0.709" L x 0.512" W (18.00mm x 13.00mm)
Shape		Rectangular
Type		General Purpose
Operating Temperature		-20°C ~ 70°C
Technology		Magnetic
Material - Cone		Polyetheretherketone (PEEK)
Material - Magnet		Nd-Fe-B
Termination		Solder Pads
Ingress Protection		IP67 - Dust Tight, Waterproof
Frequency - Self Resonant		950Hz
Port Location		Top
Height - Seated (Max)		0.177" (4.50mm)
Impedance		8 Ohms
Power - Max		1.2 W
Power - Rated		1 W
Frequency Range		950 Hz ~ 20 kHz
Efficiency - dBA		100.00
Efficiency - Testing		1W/100mm
Efficiency - Type		Sound Pressure Level (SPL)
Distortion Rating		5% Max

Documents & Media

RESOURCE TYPE		LINK
Datasheets		CS18-01P95-04-1X

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8518.29.8000
Moisture Sensitivity Level (MSL)		Not Applicable
REACH Status		REACH Affected
RoHS Status		ROHS3 Compliant
