CS5102A-BLZ _ Analog to Digital Converters (ADC)_Data Acquisition_Integrated Circuits (ICs)

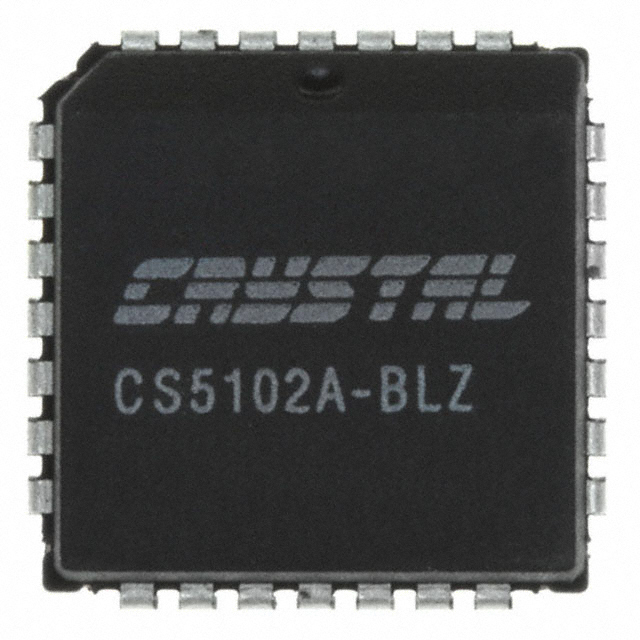

Part Number	CS5102A-BLZ
Manufacturer	Cirrus Logic
Other Part Numbers	598-1079-5-ND 2156-CS5102A-BLZ-CL 598-1079-5 2266-CS5102A-BLZ CIRCIRCS5102A-BLZ
Description	IC ADC 16BIT SAR 28PLCC
Detailed Description	16 Bit Analog to Digital Converter 2 Input 1 SAR 28-PLCC (11.51x11.51)
Datasheet	Datasheet

Category		Integrated Circuits (ICs) Data Acquisition Analog to Digital Converters (ADC)
Manufacturer		Cirrus Logic
Series
Packaging		Tube
Part Status		Obsolete

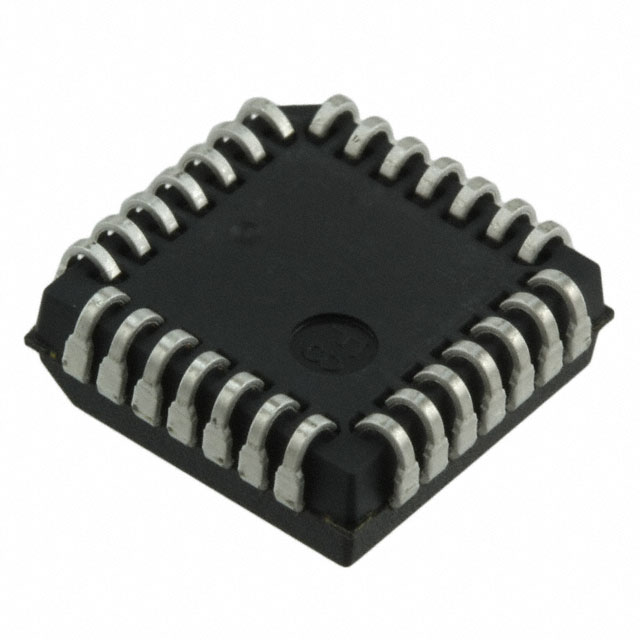

Package / Case		28-LCC (J-Lead)
Mounting Type		Surface Mount
Number of Bits		16
Configuration		S/H-ADC
Data Interface		SPI
Reference Type		External
Operating Temperature		-40°C ~ 85°C
Voltage - Supply, Analog		±5V
Voltage - Supply, Digital		±5V
Sampling Rate (Per Second)		20k
Input Type		Single Ended
Number of Inputs		2
Supplier Device Package		28-PLCC (11.51x11.51)
Architecture		SAR
Ratio - S/H:ADC		1:1
Number of A/D Converters		1

RESOURCE TYPE		LINK
Datasheets		CS5102A-BLZ
Datasheets		RoHS Certificate
Datasheets		IC Pkg Label Standardization 27/Mar/2019

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8542.39.0001
Moisture Sensitivity Level (MSL)		3 (168 Hours)
REACH Status		REACH Unaffected

This product is no longer manufactured.
