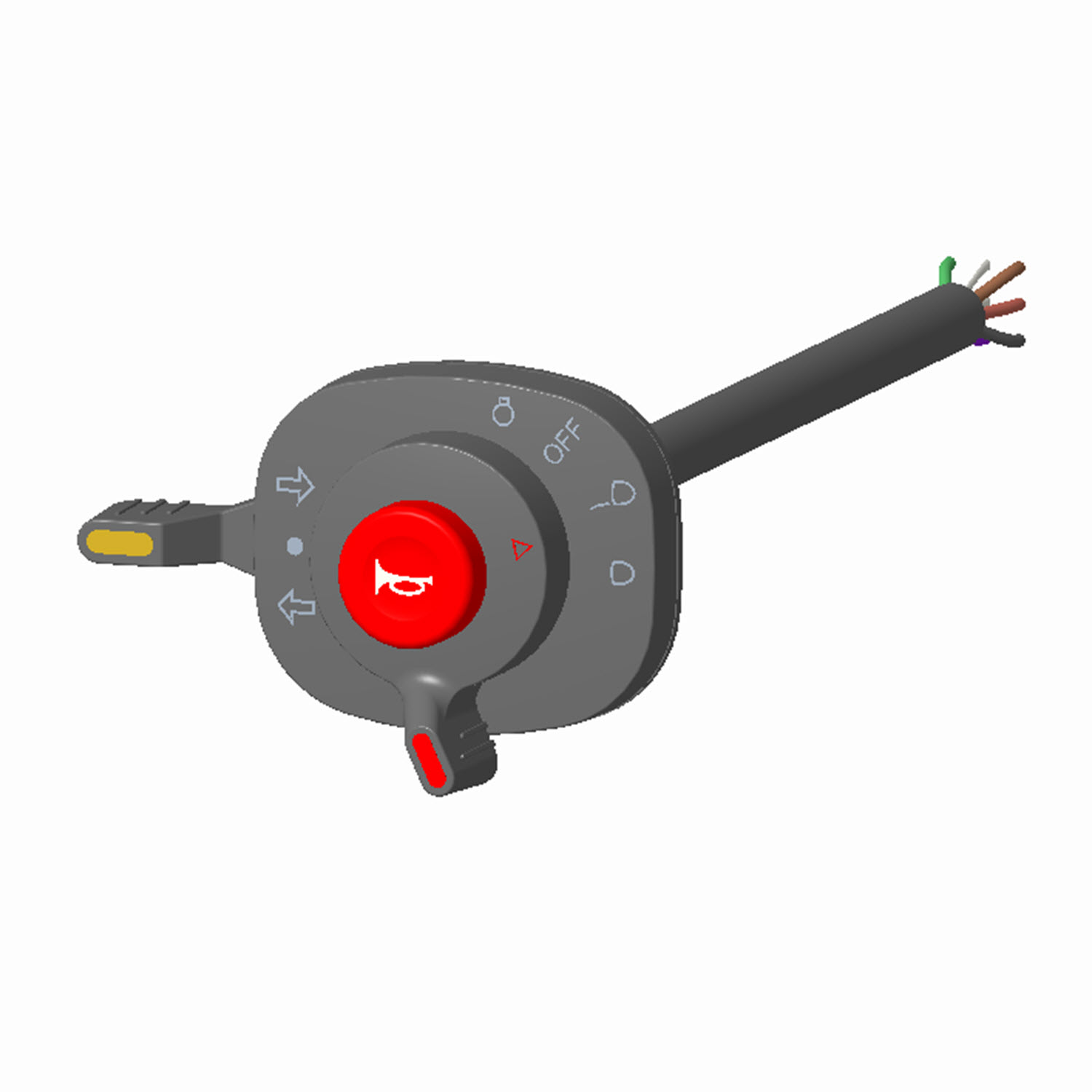

CSW-1A1A0B2-002

CSW-1A1A0B2-002

Part Number	CSW-1A1A0B2-002
Manufacturer	Littelfuse / Carling Technologies
Other Part Numbers	432-CSW-1A1A0B2-002-ND CSW-00000026 CSW1A1A0B2002 432-CSW-1A1A0B2-002
Description	SWITCH SELECT 4POS SP3T 15A 12V
Detailed Description	Selector Switch 4 Position SP3T 15A (DC) Panel Mount
Manufacturer Standard Lead Time	24 weeks

Product Attributes

Category		Switches Selector Switches
Manufacturer		Littelfuse / Carling Technologies
Series		CSW
Packaging		Box
Part Status		Active
Features		With Lever and Pushbutton
Current Rating (Amps)		15A (DC)
Mounting Type		Panel Mount
Circuit		SP3T
Type		Standard
Switch Function		On-Off-On-On
Operating Temperature		-40°C ~ 85°C
Termination Style		Wire Leads with Connector
Illumination		Non-Illuminated
Ingress Protection		IP67 - Dust Tight, Waterproof
Panel Cutout Dimensions		Circular - 52.00mm Dia
Voltage Rating - DC		12 V
Number of Positions		4

Documents & Media

RESOURCE TYPE		LINK

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.50.9020
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

In Stock: 4

Can ship immediately.
