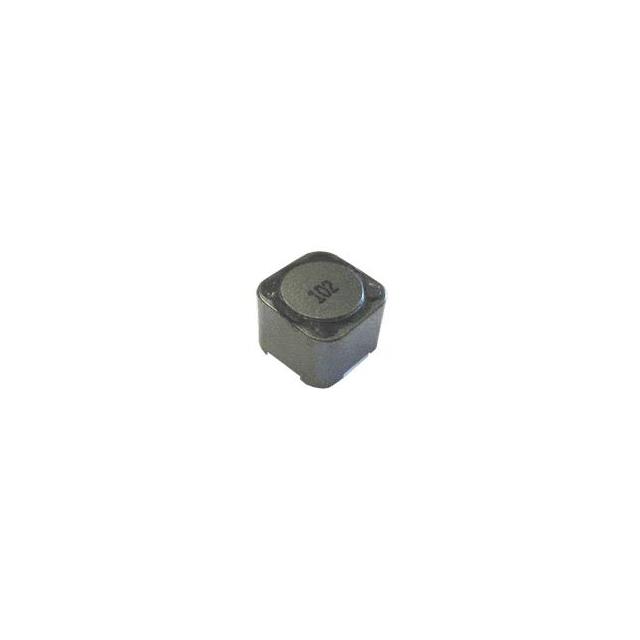

CTCDRH129F-220M

Part Number
CTCDRH129F-220M
Manufacturer Central Technologies
Other Part Numbers
4161-CTCDRH129F-220M-ND
4161-CTCDRH129F-220M
Description 22UH SMD SHIELDED POWER INDUCTOR
Detailed Description 22 µH Shielded Inductor 5 A 39mOhm Max Nonstandard
Datasheet Datasheet

Product Attributes

Category
Manufacturer Central Technologies
Series
CTCDRH129F
Packaging
Tape & Reel (TR)
Part Status Active
Tolerance ±20%
Package / Case Nonstandard
Size / Dimension 0.480" L x 0.480" W (12.20mm x 12.20mm)
Mounting Type Surface Mount
Shielding Shielded
Operating Temperature -40°C ~ 85°C
DC Resistance (DCR) 39mOhm Max
Current - Saturation (Isat) 5A
Inductance Frequency - Test 1 kHz
Height - Seated (Max) 0.394" (10.00mm)
Inductance 22 µH
Current Rating (Amps) 5 A

Documents & Media

RESOURCE TYPE LINK
Datasheets CTCDRH129F-220M

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
Moisture Sensitivity Level (MSL) Vendor Undefined
REACH Status REACH info available upon request
RoHS Status ROHS3 Compliant
