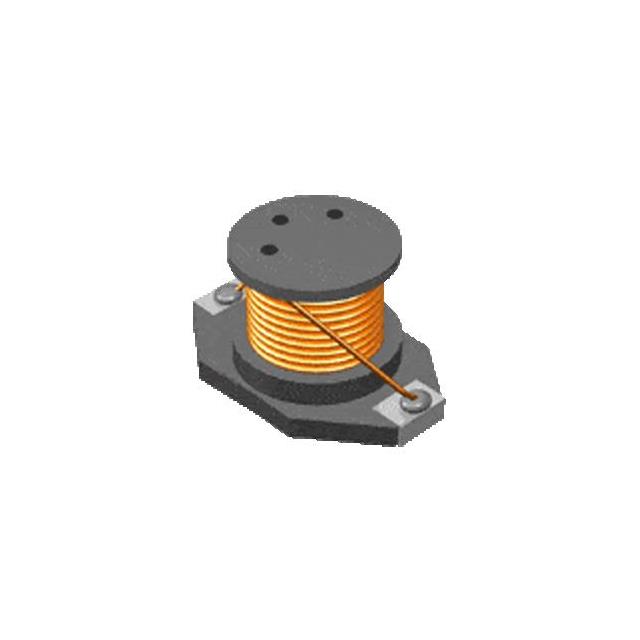

CTDO3340PF-333

CTDO3340PF-333

Part Number
CTDO3340PF-333
Manufacturer Central Technologies
Other Part Numbers
4161-CTDO3340PF-333-ND
4161-CTDO3340PF-333
Description 33UH SMD POWER INDUCTOR
Detailed Description 33 µH Unshielded Wirewound Inductor 2 A 80mOhm Max Nonstandard

Product Attributes

Category
Manufacturer Central Technologies
Series
CTDO3340PF
Packaging
Tape & Reel (TR)
Part Status Active
Tolerance ±20%
Package / Case Nonstandard
Size / Dimension 0.510" L x 0.370" W (12.95mm x 9.40mm)
Mounting Type Surface Mount
Shielding Unshielded
Type Wirewound
Operating Temperature -40°C ~ 85°C
DC Resistance (DCR) 80mOhm Max
Current - Saturation (Isat) 4A
Inductance Frequency - Test 100 kHz
Height - Seated (Max) 0.450" (11.43mm)
Inductance 33 µH
Current Rating (Amps) 2 A

Documents & Media

RESOURCE TYPE LINK

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
Moisture Sensitivity Level (MSL) Vendor Undefined
REACH Status REACH info available upon request
RoHS Status ROHS3 Compliant

Available To Order

PACKAGING QUANTITY UNIT PRICE EXT PRICE
Tape & Reel (TR) 1 $0.98 $0.98
Total Amount: $0.98

Tape & Reel (TR)

QUANTITY UNIT PRICE EXT PRICE
1 $0.98 $0.98
500 $0.80 $400.00
1,000 $0.61 $610.00
