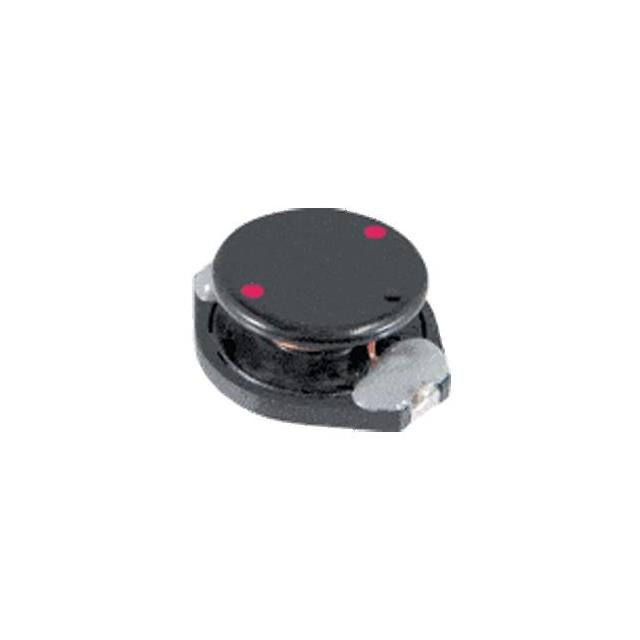

CTDO5022PF-683

Part Number
CTDO5022PF-683
Manufacturer Central Technologies
Other Part Numbers
4161-CTDO5022PF-683-ND
4161-CTDO5022PF-683
Description 68UH SMD POWER INDUCTOR
Detailed Description 68 µH Unshielded Wirewound Inductor 2.3 A 130mOhm Nonstandard
Datasheet Datasheet

Product Attributes

Category
Manufacturer Central Technologies
Series
CTDO5022PF
Packaging
Tape & Reel (TR)
Part Status Active
Tolerance ±20%
Package / Case Nonstandard
Size / Dimension 0.718" L x 0.600" W (18.24mm x 15.24mm)
Mounting Type Surface Mount
Shielding Unshielded
Type Wirewound
Operating Temperature -40°C ~ 85°C
DC Resistance (DCR) 130mOhm
Frequency - Self Resonant 8MHz
Current - Saturation (Isat) 3.5A
Inductance Frequency - Test 100 kHz
Height - Seated (Max) 0.295" (7.50mm)
Inductance 68 µH
Current Rating (Amps) 2.3 A

Documents & Media

RESOURCE TYPE LINK
Datasheets CTDO5022PF-683

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
Moisture Sensitivity Level (MSL) Vendor Undefined
REACH Status REACH info available upon request
RoHS Status ROHS3 Compliant
