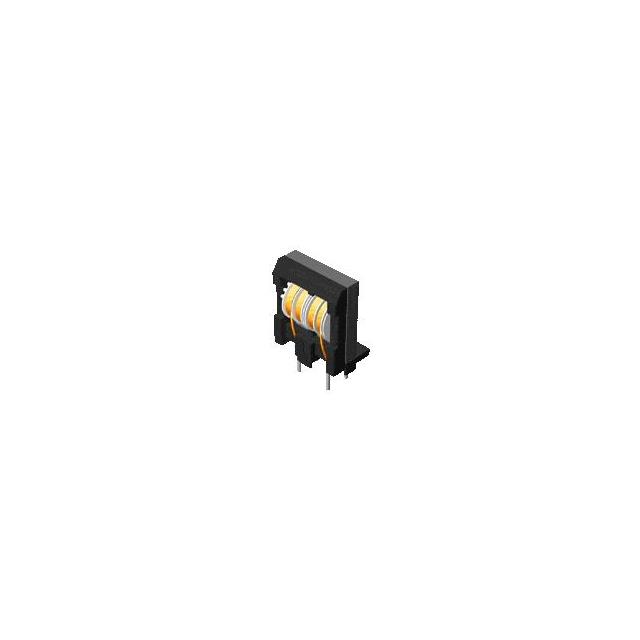

CTHF2430F-253M0R8

CTHF2430F-253M0R8

Part Number	CTHF2430F-253M0R8
Manufacturer	Central Technologies
Other Part Numbers	4161-CTHF2430F-253M0R8-ND 4161-CTHF2430F-253M0R8
Description	CMC 800MA 2LN TH
Detailed Description	2 Line Common Mode Choke Through Hole 800mA DCR 880mOhm
Datasheet	Datasheet

Product Attributes

Category		Filters Common Mode Chokes
Manufacturer		Central Technologies
Series		CTHF2430F
Packaging		Bulk
Part Status		Active
Package / Case		Vertical, 4 PC Pin
Filter Type		Power Line
Size / Dimension		1.024" L x 0.748" W (26.00mm x 19.00mm)
Mounting Type		Through Hole
Number of Lines		2
Operating Temperature		-20°C ~ 105°C
Height (Max)		1.240" (31.50mm)
Voltage Rating - AC		250V
Current Rating (Max)		800mA
DC Resistance (DCR) (Max)		880mOhm

Documents & Media

RESOURCE TYPE		LINK
Datasheets		CTHF2430F-253M0R8

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
Moisture Sensitivity Level (MSL)		Vendor Undefined
REACH Status		REACH info available upon request
RoHS Status		ROHS3 Compliant
