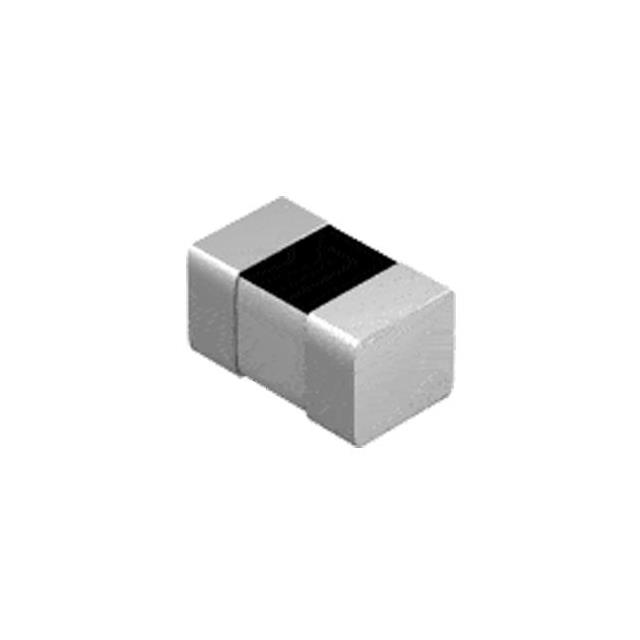

CTLL1005F-FH4N7K _ Fixed Inductors_Inductors, Coils, Chokes

Part Number	CTLL1005F-FH4N7K
Manufacturer	Central Technologies
Other Part Numbers	4161-CTLL1005F-FH4N7K-ND 4161-CTLL1005F-FH4N7K
Description	4.7NH SMD CER CORE MULT INDUCTOR
Detailed Description	4.7 nH Unshielded Multilayer Inductor 300 mA 180mOhm Max 0402 (1005 Metric)

Category		Inductors, Coils, Chokes Fixed Inductors
Manufacturer		Central Technologies
Series		CTLL1005F
Packaging		Tape & Reel (TR)
Part Status		Active
Tolerance		±10%
Package / Case		0402 (1005 Metric)
Size / Dimension		0.039" L x 0.020" W (1.00mm x 0.50mm)
Mounting Type		Surface Mount
Shielding		Unshielded
Type		Multilayer
Operating Temperature		-55°C ~ 125°C
DC Resistance (DCR)		180mOhm Max
Q @ Freq		8 @ 100MHz
Frequency - Self Resonant		6GHz
Material - Core		Ceramic
Inductance Frequency - Test		100 MHz
Supplier Device Package		0402
Height - Seated (Max)		0.026" (0.65mm)
Inductance		4.7 nH
Current Rating (Amps)		300 mA

RESOURCE TYPE		LINK

ATTRIBUTE		DESCRIPTION
Moisture Sensitivity Level (MSL)		Vendor Undefined
REACH Status		REACH info available upon request
RoHS Status		ROHS3 Compliant
