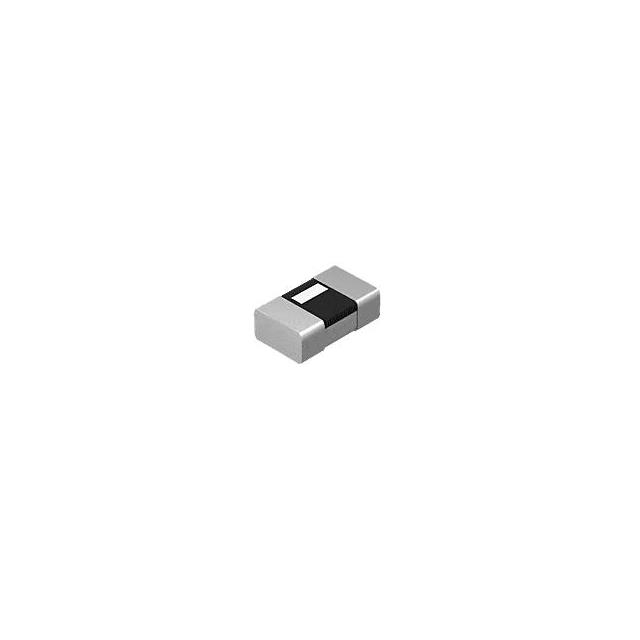

CTTF0402F-1N8B

CTTF0402F-1N8B

Part Number
CTTF0402F-1N8B
Manufacturer Central Technologies
Other Part Numbers
4161-CTTF0402F-1N8B-ND
4161-CTTF0402F-1N8B
Description FIXED IND 1.8NH0.1NH SMD
Detailed Description 1.8 nH Unshielded Thin Film Inductor 560 mA 200mOhm Max 0402 (1005 Metric)
Datasheet Datasheet

Product Attributes

Category
Manufacturer Central Technologies
Series
CTTF0402F
Packaging
Tape & Reel (TR)
Part Status Active
Tolerance ±0.1nH
Package / Case 0402 (1005 Metric)
Size / Dimension 0.039" L x 0.020" W (1.00mm x 0.50mm)
Mounting Type Surface Mount
Shielding Unshielded
Type Thin Film
Operating Temperature -40°C ~ 85°C
DC Resistance (DCR) 200mOhm Max
Q @ Freq 13 @ 500MHz
Frequency - Self Resonant 6GHz
Inductance Frequency - Test 500 MHz
Supplier Device Package 0402
Height - Seated (Max) 0.016" (0.40mm)
Inductance 1.8 nH
Current Rating (Amps) 560 mA

Documents & Media

RESOURCE TYPE LINK
Datasheets CTTF0402F-1N8B

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
Moisture Sensitivity Level (MSL) Vendor Undefined
REACH Status REACH info available upon request
RoHS Status ROHS3 Compliant

Available To Order

PACKAGING QUANTITY UNIT PRICE EXT PRICE
Tape & Reel (TR) 1 $0.09 $0.09
Total Amount: $0.09

Tape & Reel (TR)

QUANTITY UNIT PRICE EXT PRICE
1 $0.09 $0.09
500 $0.07 $35.00
1,000 $0.06 $60.00
