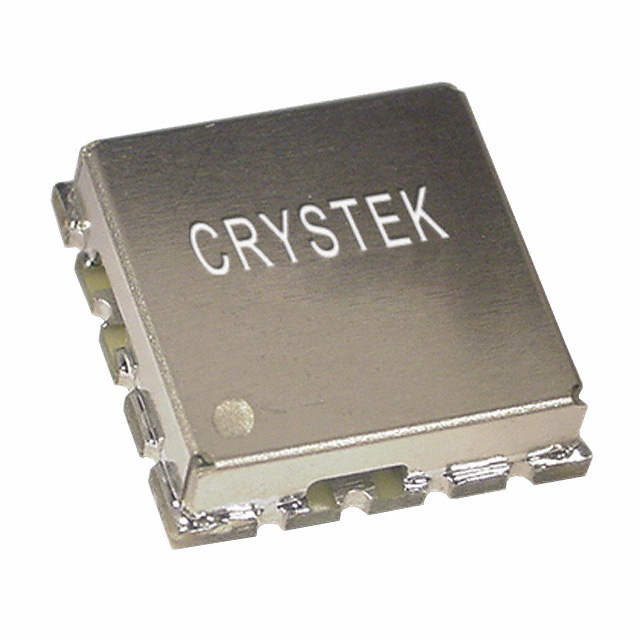

CVCO55BE-1750-2150

CVCO55BE-1750-2150

Part Number	CVCO55BE-1750-2150
Manufacturer	Crystek Corporation
Other Part Numbers	744-1087-ND 744-1087 CVCO55BE17502150
Description	VCO 1950MHZ 0.3-4.7V 12.7X12.7MM
Detailed Description	1950MHz Center Frequency 0.3 V ~ 4.7 V Voltage Controlled Oscillator 0 ±3 dBm -15 2nd Harmonic Typ (dBc)
Manufacturer Standard Lead Time	9 weeks
Datasheet	Datasheet

Product Attributes

Category		Crystals, Oscillators, Resonators VCOs (Voltage Controlled Oscillators)
Manufacturer		Crystek Corporation
Series		CVCO55
Packaging		Strip
Part Status		Active
Package / Case		16-QFN, Variant
Size / Dimension		0.500" L x 0.500" W (12.70mm x 12.70mm)
Operating Temperature		-40°C ~ 85°C
Voltage - Supply		5V
Height		0.150" (3.81mm)
Frequency Range		1750 ~ 2150MHz
2nd Harmonic, Typ (dBc)		-15
Frequency - Center		1950MHz
Icc Max		25mA
Pushing (MHz/V)		1.5
Phase Noise Typ (dBc/Hz)		-97
Power (dBm)		0 ±3
Tuning Voltage (VDC)		0.3 V ~ 4.7 V

Documents & Media

RESOURCE TYPE		LINK
Datasheets		CVCO55BE-1750-2150
Datasheets		VCO Selector Guide
Datasheets		CVCO55xx Series Top

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8542.39.0001
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

In Stock: 32

Can ship immediately.
