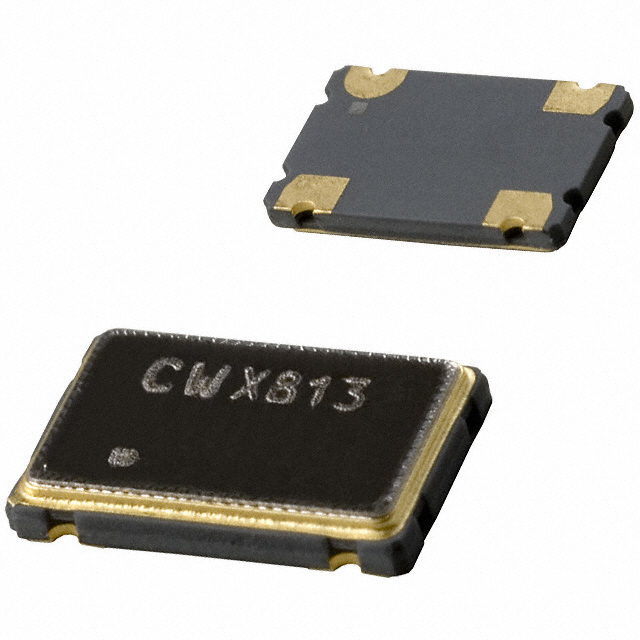

CWX813-018.432M

CWX813-018.432M

Part Number	CWX813-018.432M
Manufacturer	Connor Winfield
Other Part Numbers	222-CWX813-018.432MTR-ND 222-CWX813-018.432MCT-ND 222-CWX813-018.432MDKR-ND CWX81318.432M 222-CWX813-018.432MTR CW523CT 222-CWX813-018.432MDKR CWX813018.432M 222-CWX813-018.432MCT CWX813 18.432M CW523TR CWX813-18.432M CW523TR-ND CW523DKR-ND CW523CT-ND CW523DKR
Description	XTAL OSC XO 18.4320MHZ LVCMOS
Detailed Description	18.432 MHz XO (Standard) LVCMOS Oscillator 3.3V Enable/Disable 4-SMD, No Lead
Manufacturer Standard Lead Time	12 weeks
Datasheet	Datasheet

Product Attributes

Category		Crystals, Oscillators, Resonators Oscillators
Manufacturer		Connor Winfield
Series		CWX813
Packaging		Tape & Reel (TR) Cut Tape (CT)
Part Status		Active
Package / Case		4-SMD, No Lead
Size / Dimension		0.276" L x 0.197" W (7.00mm x 5.00mm)
Mounting Type		Surface Mount
Output		LVCMOS
Function		Enable/Disable
Type		XO (Standard)
Operating Temperature		-20°C ~ 70°C
Frequency Stability		±25ppm
Voltage - Supply		3.3V
Current - Supply (Max)		30mA
Height - Seated (Max)		0.051" (1.30mm)
Frequency		18.432 MHz
Base Resonator		Crystal

Documents & Media

RESOURCE TYPE		LINK
Datasheets		CWX813-018.432M
Datasheets		CWX(813,823)Series Top
Datasheets		CWX Series Bottom

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8542.39.0001
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

In Stock: 957

Can ship immediately.
