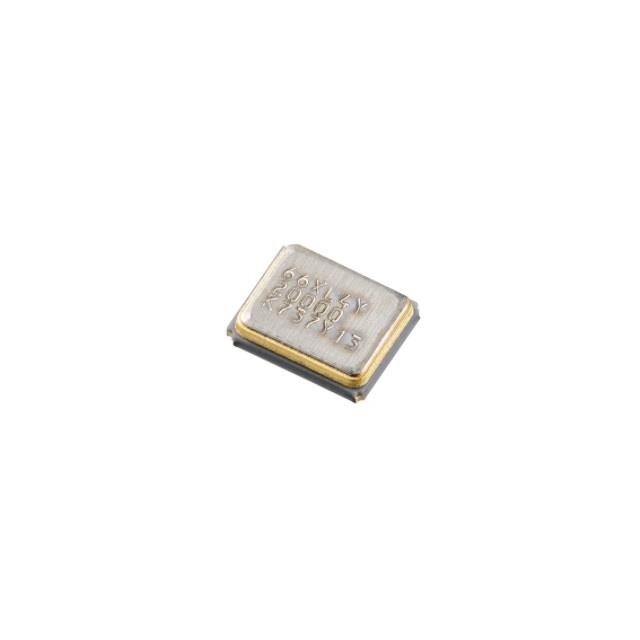

CX2016SA20000H0FPLG1

CX2016SA20000H0FPLG1

Part Number	CX2016SA20000H0FPLG1
Manufacturer	KYOCERA AVX
Other Part Numbers	478-CX2016SA20000H0FPLG1TR-ND 478-CX2016SA20000H0FPLG1CT-ND 478-CX2016SA20000H0FPLG1DKR-ND 478-CX2016SA20000H0FPLG1CT 478-CX2016SA20000H0FPLG1DKR 478-CX2016SA20000H0FPLG1TR
Description	2.05X1.65X0.45MM SIZE, 20MHZ, +/
Detailed Description	20 MHz ±10ppm Crystal 12pF 150 Ohms 4-SMD, No Lead
Manufacturer Standard Lead Time	20 weeks
Datasheet	Datasheet

Product Attributes

Category		Crystals, Oscillators, Resonators Crystals
Manufacturer		KYOCERA AVX
Series		CX2016SA, Kyocera
Packaging		Tape & Reel (TR) Cut Tape (CT)
Part Status		Active
Package / Case		4-SMD, No Lead
Load Capacitance		12pF
Size / Dimension		0.081" L x 0.065" W (2.05mm x 1.65mm)
Mounting Type		Surface Mount
Type		MHz Crystal
Frequency Stability		±20ppm
Frequency Tolerance		±10ppm
Operating Mode		Fundamental
Ratings		AEC-Q200
Height - Seated (Max)		0.020" (0.50mm)
ESR (Equivalent Series Resistance)		150 Ohms
Frequency		20 MHz

Documents & Media

RESOURCE TYPE		LINK
Datasheets		CX2016SA20000H0FPLG1

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8541.60.0050
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

In Stock: 2930

Can ship immediately.

QUANTITY

PACKAGING	QUANTITY	UNIT PRICE	EXT PRICE
Cut Tape (CT)	1	$0.59	$0.59
Total Amount: $0.59

Tape & Reel (TR)

QUANTITY	UNIT PRICE	EXT PRICE
3,000	$0.29	$870.00
6,000	$0.28	$1,680.00
15,000	$0.27	$4,050.00

Cut Tape (CT)

QUANTITY	UNIT PRICE	EXT PRICE
1	$0.59	$0.59
10	$0.49	$4.90
50	$0.44	$22.00
100	$0.39	$39.00
500	$0.37	$185.00
1,000	$0.31	$310.00
