CXA1304-0000-000C0HB265F _ LED COBs, Engines, Modules, Strips_Optoelectronics

Part Number	CXA1304-0000-000C0HB265F
Manufacturer	Cree LED
Other Part Numbers	CXA1304-0000-000C0HB265F-ND

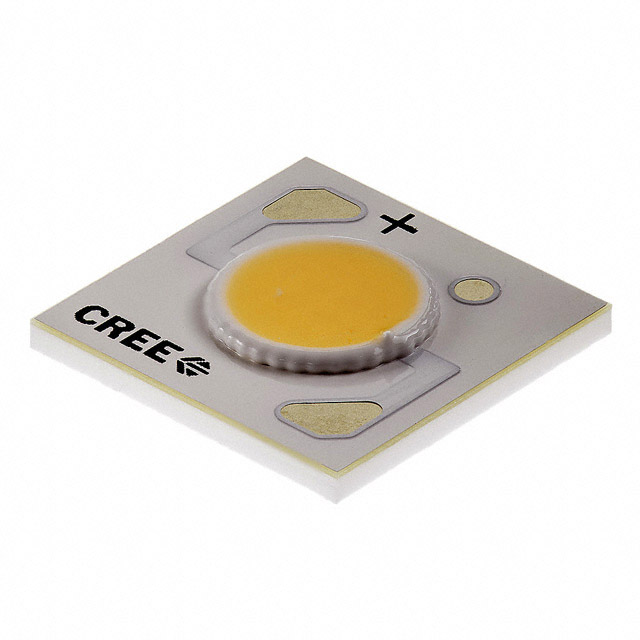

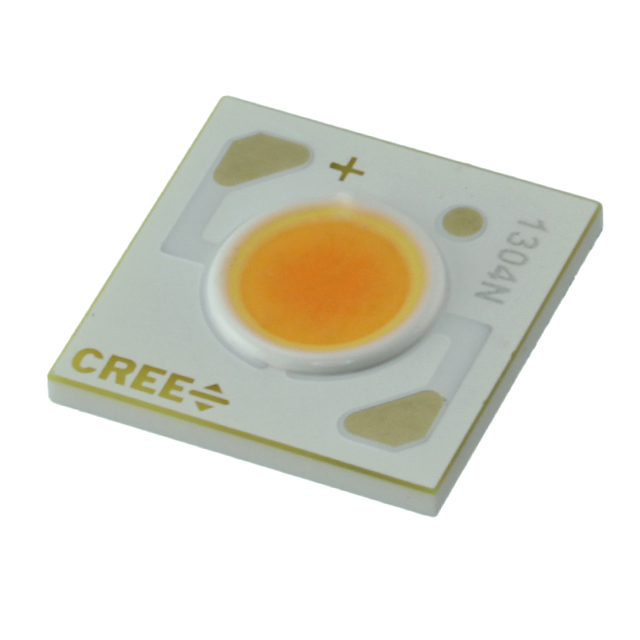

Description	LED COB XLAMP COOL WHT SQU 6500K
Detailed Description	LED Lighting COBs Engines Modules Chip On Board (COB) XLamp® CXA1304 White, Cool Square
Manufacturer Standard Lead Time	6 weeks

Category		Optoelectronics LED COBs, Engines, Modules, Strips
Manufacturer		Cree LED
Series		XLamp® CXA1304
Packaging		Tray
Part Status		Active
Color		White, Cool
Size / Dimension		13.35mm L x 13.35mm W
Type		Chip On Board (COB)
Configuration		Square
Voltage - Forward (Vf) (Typ)		9V
Height		1.70mm
Current - Test		400mA
Viewing Angle		115°
Lens Type		Flat
Current - Max		1A
Lumens/Watt @ Current - Test		110 lm/W
CCT (K)		6500K 4-Step MacAdam Ellipse
CRI (Color Rendering Index)		80
Light Emitting Surface (LES)		6.00mm Dia
Temperature - Test		85°C
Luminous Flux @ Current/Temperature		395lm (380lm ~ 410lm)

RESOURCE TYPE		LINK

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8541.41.0000
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		RoHS Compliant
