CY8C20536A-24PVXI

Part Number
CY8C20536A-24PVXI
Manufacturer IR (Infineon Technologies)
Other Part Numbers
CY8C20536A-24PVXI-ND
SP005648509
2015-CY8C20536A-24PVXI
-CY8C20536A-24PVXI
CY8C20536A24PVXI
2832-CY8C20536A-24PVXI
2156-CY8C20536A-24PVXI
CYPCYPCY8C20536A-24PVXI
Description IC MCU 8K FLASH 1K SRAM 48SSOP
Manufacturer Standard Lead Time 10 weeks

Product Attributes

Category
Manufacturer IR (Infineon Technologies)
Series
CapSense® Controllers
Packaging
Tube
Part Status Active

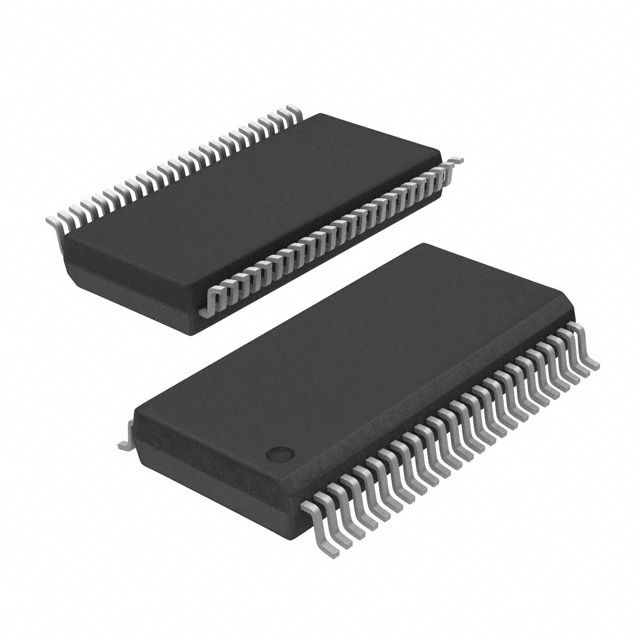

Package / Case 48-BSSOP (0.295", 7.50mm Width)
Mounting Type Surface Mount
Interface I2C, SPI
RAM Size 1K x 8
Operating Temperature -40°C ~ 85°C
Voltage - Supply 1.71V ~ 5.5V
Controller Series CY8C20xx6A
Program Memory Type FLASH (8kB)
Applications Capacitive Sensing
Core Processor M8C
Supplier Device Package 48-SSOP
Number of I/O 36
DigiKey Programmable Not Verified

Documents & Media

RESOURCE TYPE LINK
Datasheets CY8C20536A-24PVXI
Datasheets CY8C20XX6A/S
Other Related Documents Cypress “No Warranty” Parts
Product Training Modules CapSense Mechanical Button Replacement (MBR)
Environmental Information RoHS Certificate
Featured Product Cypress CapSense™
PCN Design/Specification Copper Palladium Wire Update 16/Dec/2014
PCN Assembly/Origin Qualification Test Site 13/Mar/2014
PCN Packaging Ship Label REV
PCN Other Mult Devices 05/Aug/2018

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8542.31.0001
Moisture Sensitivity Level (MSL) 3 (168 Hours)
REACH Status REACH Unaffected
RoHS Status ROHS3 Compliant

In Stock: 398

Can ship immediately.
