CYPD2122-24LQXI

Part Number
CYPD2122-24LQXI
Manufacturer IR (Infineon Technologies)
Other Part Numbers
448-CYPD2122-24LQXI-ND
428-4291-ND
2156-CYPD2122-24LQXI
-CYPD2122-24LQXI
448-CYPD2122-24LQXI
SP005653505
CYPD2122-24LQXI-ND
2832-CYPD2122-24LQXI
428-4291
CYPCYPCYPD2122-24LQXI
Description IC MCU 32BIT 32KB FLASH 24QFN
Manufacturer Standard Lead Time 13 weeks

Product Attributes

Category
Manufacturer IR (Infineon Technologies)
Series
EZ-PD™ CCG2
Packaging
Tray
Part Status Active

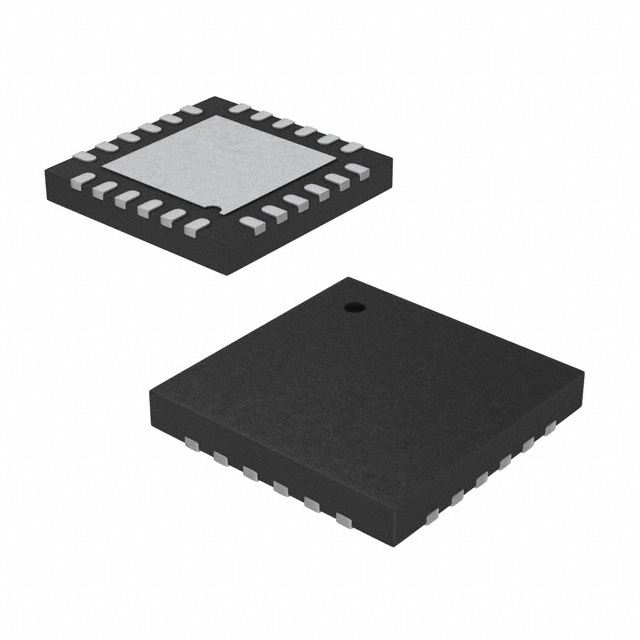

Package / Case 24-UFQFN Exposed Pad
Mounting Type Surface Mount
Interface I2C, SPI, UART/USART, USB
RAM Size 4K x 8
Operating Temperature -40°C ~ 85°C (TA)
Voltage - Supply 1.71V ~ 5.5V
Program Memory Type FLASH (32KB)
Applications USB Type C
Core Processor ARM® Cortex®-M0
Supplier Device Package 24-QFN (4x4)
Number of I/O 14
DigiKey Programmable Not Verified

Documents & Media

RESOURCE TYPE LINK
Datasheets CYPD2122-24LQXI
Datasheets EZ-PD CCG2 Datasheet
Environmental Information RoHS Certificate
Featured Product Type C Overview
Featured Product EZ-PD™ CCG2 Type-C Port Controller
PCN Design/Specification Mult Dev Material Chg 16/Oct/2019
PCN Packaging Ship Label REV
PCN Other Failure Analysis Policy Change 27/Jul/2020

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN 3A991A2
HTSUS 8542.31.0001
Moisture Sensitivity Level (MSL) 3 (168 Hours)
REACH Status REACH Unaffected
RoHS Status ROHS3 Compliant

In Stock: 4900

Can ship immediately.
PACKAGING QUANTITY UNIT PRICE EXT PRICE
{{ p.name }} {{ numberFormat(p.buyQty) }} {{ priceFormat(p.unitPrice) }} {{ priceFormat(p.totalPrice) }}
Total Amount: {{ priceFormat(quotes.total) }} (including {{ priceFormat(quotes.fee) }} fee)

{{ package.name }}

QUANTITY UNIT PRICE EXT PRICE
{{ numberFormat(price.break_quantity) }} {{ priceFormat(price.unit_price) }} {{ priceFormat(price.break_quantity * price.unit_price) }}
Detailed pricing is currently unavailable.
Detailed packaging information is temporarily unavailable.
