Part Number |
D38999/20WJ35PA
|
---|---|
Manufacturer | Amphenol Aerospace Operations |
Other Part Numbers |
AD38999/20WJ35PA-ND
D38999/20WJ35PA-ND
88-552009-35G
AD38999/20WJ35PA
|

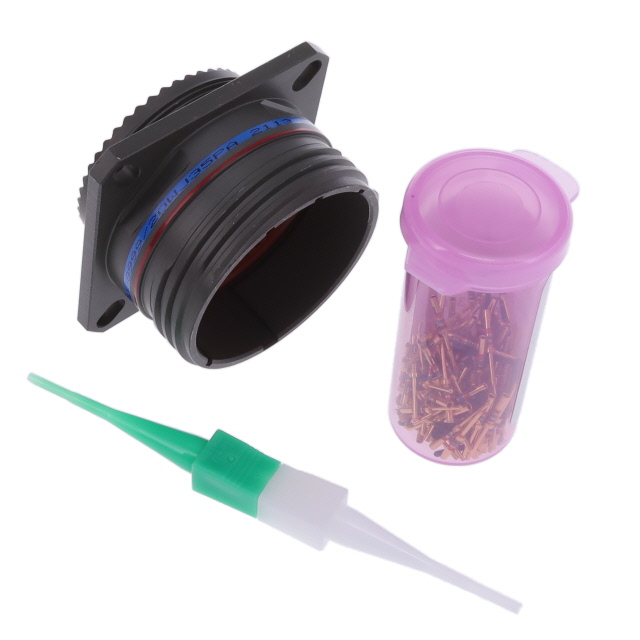

Description | CONN RCPT MALE 128POS GOLD CRIMP |
Detailed Description | 128 Position Circular Connector Receptacle, Male Pins Crimp |
Manufacturer Standard Lead Time | 10 weeks |
Datasheet | Datasheet |
Category | ||
---|---|---|
Manufacturer | Amphenol Aerospace Operations | |
Series |
Military, MIL-DTL-38999 Series III, Tri-Start™ TV
|
|
Packaging |
Bulk
|
|
Part Status | Active | |
Connector Type | Receptacle, Male Pins | |
Color | Olive Drab | |
Mounting Type | Panel Mount | |
Shielding | Shielded | |
Number of Positions | 128 | |
Orientation | A | |
Shell Size - Insert | 25-35 | |
Operating Temperature | -65°C ~ 175°C | |
Applications | Aerospace, Aviation, Marine, Military | |
Fastening Type | Threaded | |
Termination | Crimp | |
Ingress Protection | Environment Resistant | |
Mounting Feature | Flange | |
Contact Material | Copper Alloy | |
Shell Size, MIL | J | |
Contact Finish - Mating | Gold | |
Contact Finish Thickness - Mating | 50.0µin (1.27µm) | |
Shell Material | Aluminum | |
Shell Finish | Olive Drab Cadmium | |
Primary Material | Metal |
RESOURCE TYPE | LINK | |
---|---|---|
Datasheets | D38999/20WJ35PA |
ATTRIBUTE | DESCRIPTION | |
---|---|---|
ECCN | EAR99 | |
HTSUS | 8536.69.4020 | |
Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
RoHS Status | RoHS non-compliant |
