D38999/24WE26SA

Part Number
D38999/24WE26SA
Manufacturer Amphenol Aerospace Operations
Other Part Numbers
1178-D38999/24WE26SA-ND
91-552005-26H
88-552065-26H
1178-D38999/24WE26SA
Description RECEPT

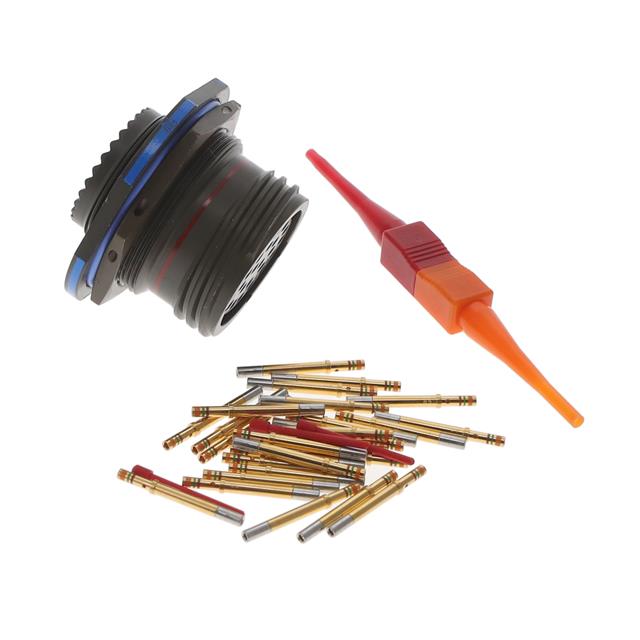

Detailed Description 26 Position Circular Connector Receptacle, Female Sockets Crimp
Manufacturer Standard Lead Time 10 weeks
Datasheet Datasheet

Product Attributes

Category
Manufacturer Amphenol Aerospace Operations
Series
Tri-Start™ TV
Packaging
Bag
Part Status Active
Features Self Locking
Connector Type Receptacle, Female Sockets
Color Olive Drab
Mounting Type Panel Mount
Shielding Shielded
Number of Positions 26
Orientation A
Shell Size - Insert 17-26
Operating Temperature -65°C ~ 175°C
Applications Aerospace, Aviation, Marine, Military
Fastening Type Threaded
Termination Crimp
Ingress Protection Environment Resistant
Mounting Feature Bulkhead - Front Side Nut
Contact Material Copper Alloy
Shell Size, MIL E
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 50.0µin (1.27µm)
Grade Military
Shell Material Aluminum
Shell Finish Olive Drab Cadmium
Insert Material Thermoplastic
Primary Material Metal
Qualification MIL-DTL-38999 Series III

Documents & Media

RESOURCE TYPE LINK
Datasheets D38999/24WE26SA

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8536.69.4020
Moisture Sensitivity Level (MSL) Not Applicable
REACH Status REACH Affected
RoHS Status RoHS non-compliant

In Stock: 14

Can ship immediately.
