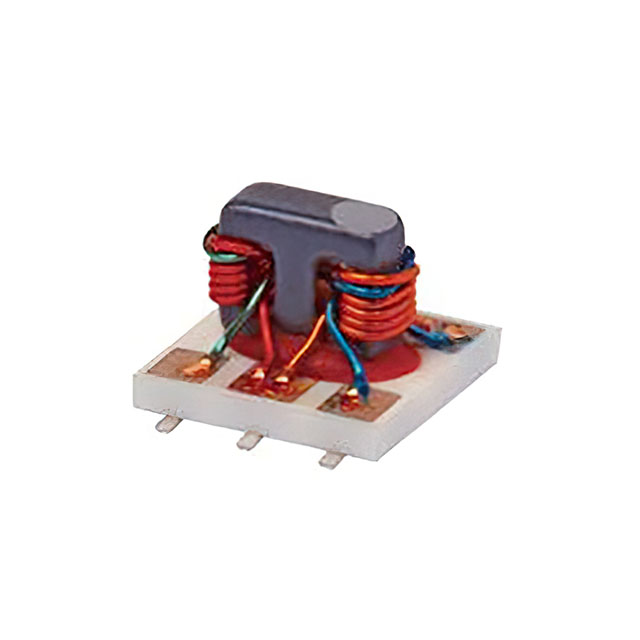

DBTC-20-4L+

DBTC-20-4L+

Part Number	DBTC-20-4L+
Manufacturer	Mini-Circuits
Other Part Numbers	3157-DBTC-20-4L+TR-ND 3157-DBTC-20-4L+CT-ND 3157-DBTC-20-4L+DKR-ND 3157-DBTC-20-4L+CT 3157-DBTC-20-4L+DKR 3157-DBTC-20-4L+TR
Description	RF DIR COUPLER 20MHZ-1GHZ 5SMD
Detailed Description	RF Directional Coupler Cellular 20MHz ~ 1GHz 20.4 ± 0.5dB 1W 5-SMD Module
Manufacturer Standard Lead Time	11 weeks
Datasheet	Datasheet

Product Attributes

Category		RF and Wireless RF Directional Coupler
Manufacturer		Mini-Circuits
Series
Packaging		Tape & Reel (TR) Cut Tape (CT)
Part Status		Active
Package / Case		5-SMD Module
Frequency		20MHz ~ 1GHz
Applications		Cellular
Power - Max		1W
Coupling Factor		20.4 ± 0.5dB
Coupler Type		Standard
Return Loss		31.8dB

Documents & Media

RESOURCE TYPE		LINK
Datasheets		DBTC-20-4L+

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8548.00.0000
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

In Stock: 1928

Can ship immediately.
