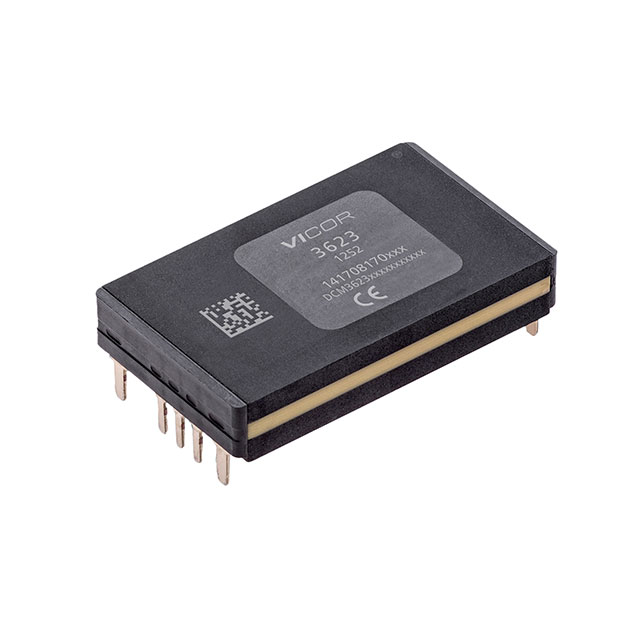

DCM24AP480T320A50 _ DC DC Converters_Power Supplies

Part Number	DCM24AP480T320A50
Manufacturer	Vicor
Other Part Numbers	1102-5453-ND 1102-5453
Description	DC DC CONVERTER 48V 320W
Detailed Description	Isolated Module DC DC Converter 1 Output 48V 6.67A 18V - 36V Input
Manufacturer Standard Lead Time	32 weeks

Category		Power Supplies - Board Mount DC DC Converters
Manufacturer		Vicor
Series		VI Chip® DCM® (320W)
Packaging		Tray
Part Status		Active
Features		Remote On/Off, OCP, OTP, OVP, SCP, UVLO
Package / Case		9-DIP Module
Size / Dimension		1.52" L x 0.90" W x 0.29" H (38.7mm x 22.8mm x 7.3mm)
Mounting Type		Through Hole
Type		Isolated Module
Operating Temperature		-40°C ~ 125°C
Applications		ITE (Commercial)
Voltage - Input (Max)		36V
Efficiency		92.5%
Current - Output (Max)		6.67A
Voltage - Input (Min)		18V
Voltage - Output 1		48V
Power (Watts)		320 W
Number of Outputs		1
Voltage - Isolation		2.25 kV

RESOURCE TYPE		LINK
Datasheets		DCM24AP480T320A50
Datasheets		Vicor REACH
Datasheets		Vicor RoHS Cert
Datasheets		Multiple Devices Height Specification 30/May/2017
Datasheets		VI20230602 6/2/23
Datasheets		Plating process chg 02/JAN/2024
Datasheets		Packaging material change 09/MAY/2022
Datasheets		3623 Thru Hole Drawing

ATTRIBUTE		DESCRIPTION
California Prop 65		California Prop 65 Information
ECCN		EAR99
HTSUS		8504.40.9580
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
