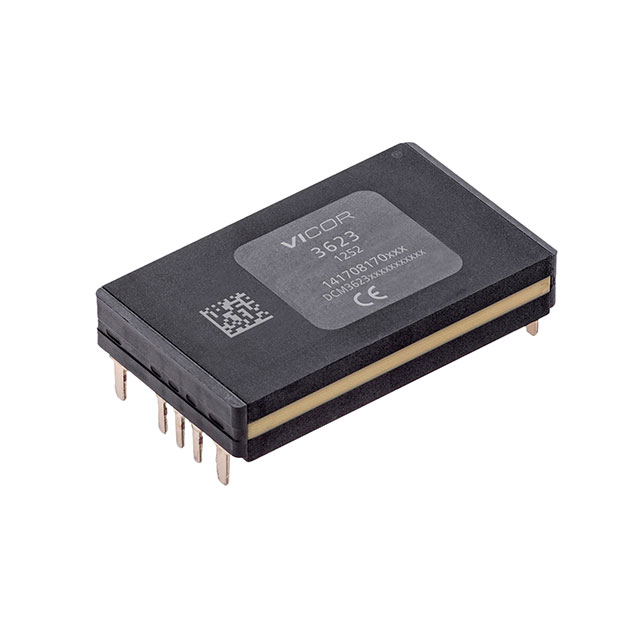

DCM3623T75H17C2T00 _ DC DC Converters_Power Supplies

Part Number	DCM3623T75H17C2T00
Manufacturer	Vicor
Other Part Numbers	1102-5650-ND 1102-5650
Description	DC DC CONVERTER 15V 321W
Detailed Description	Isolated Module DC DC Converter 1 Output 15V 21.4A 36V - 75V Input
Manufacturer Standard Lead Time	32 weeks
Datasheet	Datasheet

Category		Power Supplies - Board Mount DC DC Converters
Manufacturer		Vicor
Series		VI Chip® DCM® (320W)
Packaging		Bulk
Part Status		Active
Features		OCP, OTP, OVP, SCP, UVLO
Package / Case		9-DIP Module
Size / Dimension		1.52" L x 0.90" W x 0.29" H (38.7mm x 22.8mm x 7.3mm)
Mounting Type		Through Hole
Type		Isolated Module
Operating Temperature		-40°C ~ 125°C
Applications		ITE (Commercial)
Voltage - Input (Max)		75V
Efficiency		92.2%
Current - Output (Max)		21.4A
Voltage - Input (Min)		36V
Voltage - Output 1		15V
Power (Watts)		321 W
Number of Outputs		1
Voltage - Isolation		2.25 kV

RESOURCE TYPE		LINK
Datasheets		DCM3623T75H17C2T00
Datasheets		Vicor REACH
Datasheets		Vicor RoHS Cert
Datasheets		Multiple Devices Height Specification 30/May/2017
Datasheets		VI20230602 6/2/23
Datasheets		Plating process chg 02/JAN/2024
Datasheets		Packaging material change 09/MAY/2022

ATTRIBUTE		DESCRIPTION
California Prop 65		California Prop 65 Information
ECCN		EAR99
HTSUS		8504.40.9580
Moisture Sensitivity Level (MSL)		Not Applicable
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

Can ship immediately.
